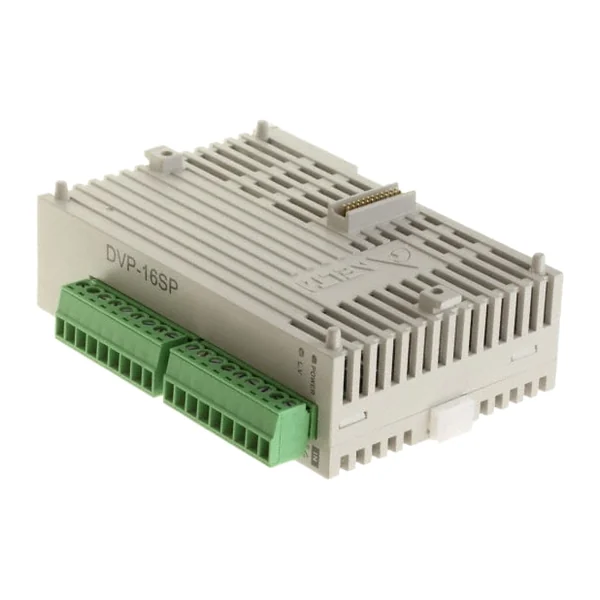

DVP16SP11R — DVP-S (Module) — Digital module, relay, 8 inputs, 8 outputs
Hersteller: Delta Electronics · Artikelnummer: DVP16SP11R
Auf Lager
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Produktbeschreibung
DVP16SP11R — digital input/output module for DVP-S series PLC, mounted to the right of the processor module · 8 inputs 24 V DC, sink or source · activation above 16.5 V DC, deactivation below 8 V DC · response time approximately 10 ms · input resistance 4.7 kΩ, isolation 500 V AC · 8 relay outputs 10–240 V AC / 5–30 V DC · 1.5 A per output, 5 A per common terminal · switching frequency up to 1 Hz · response time approximately 10 ms · isolation 1500 V AC · power supply 24 V DC from the processor module · removable terminal block · LED indicators for power and low voltage · mounting on 35 mm DIN rail
Technische Daten
| Serie | DVP-S |
|---|---|
| Digitale Eingänge | 8 |
| Digitale Ausgänge | 8 |
| Zusätzliche Funktionen | Ausgänge: Relais |
| Nettogewicht, kg | 0,09 |
| Zolltarifnummer (KN/TARIC) | 8538 90 99 (8538909999) |
| Einfuhrzoll aus Drittländern | 1,7 % |
Dokumente
