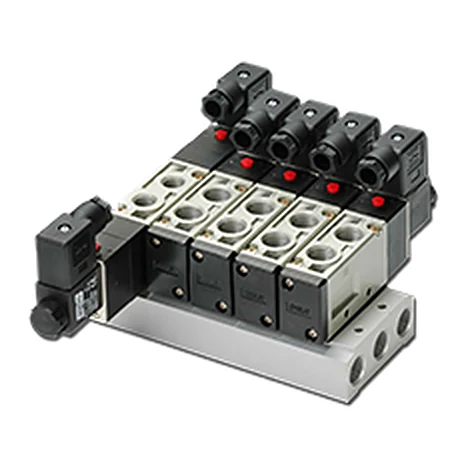

SV-8202-G-DC24V-KL — Solenoid directional valve SV 800 5/2, 2 coils, G 1/4, 24 V DC, DIN with LED

Περιγραφή προϊόντος

Solenoid valve SV 800 5/2, 2 coils, G 1/4, 24 V DC, DIN rail mount with LED.

• Code: SV 8 2 0 2 — SV 800 series, 2 coils, 5/2, connection 1/4.
• Pilot control with air operation, normally closed; operating environment air, 1.5–7 kgf/cm² (150–700 kPa), 5–60 °C.
• Does not require lubrication; if lubrication is applied, use ISO VG32 oil, and do not stop the lubrication.
• Manual control: push-button with latching
• Outputs A, B, and P - 1/4, exhaust R1/R2 - 1/4
• DIN connector, IP65; VCTF cable, 0.75 mm², outer diameter 4.5–7 mm.
• The indicator (L) has no surge protection.
• Stabilized power supply within ±10%, no overshoots; minimum switching time 0.1 s.
• Can also be mounted on a manifold: up to 12 fans for SV 800 (suffix M2…M12 in the code).
• Standard voltage: 24 V DC / 3 W; other standards: 110 V AC / 5 VA and 220 V AC / 5 VA.
• Bistable: when power is off, it remains in the last position (symbol without spring).

Τεχνικά στοιχεία

Έγγραφα

• Chelic SV — технически лист (PDF, англ.) (PDF)
