LM-FA080-1/30 — Planetary gearbox Li Ming FA080, i = 30, for servo motor Delta ECMA-C20807 (input Ø19 mm)
Valmistaja: Li Ming · Koodi: LM-FA080-1/30
717,34 € sis. ALV / kpl597,78 € veroton
Varastossa
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Tuotekuvaus

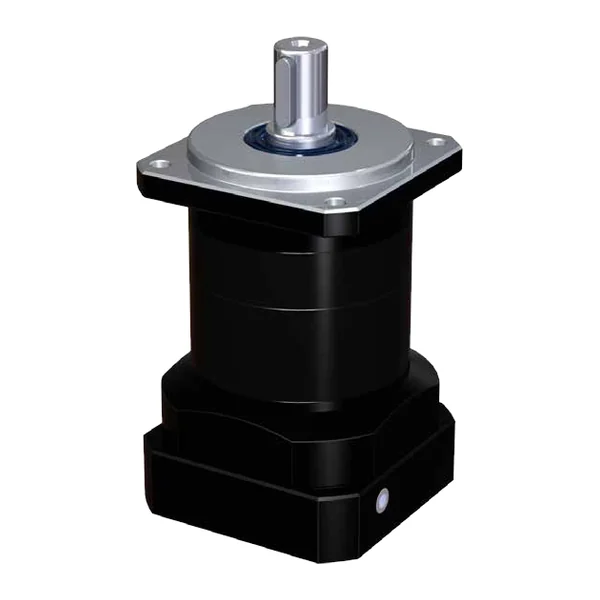

Li Ming FA080 planetary gearbox, i = 30, for Delta ECMA-C20807 servo motor (input Ø19 mm).
- The FA series of precision planetary gearboxes from Li Ming for servo motors: sizes 50–180, 1 stage (i = 3–10) and 2 stages (i = 15–100), input 100 W – 30 kW.
- The gears are helical (twice the engagement of straight gears), made of Ni-Cr-Mo steel SNCM220, hardened to 57–60 HRC and ground to DIN 6 class.
- The satellite guide is integrated with the output shaft, and the satellites are mounted on needle bearings without a separator - for higher torsional stiffness.
- The motor is mounted with a dynamically balanced collet, ensuring no backlash in the connection at high speeds.
- FA080 at i = 30: nominal output torque 112 Nm, emergency 3 × T2N, acceleration 1.8 × T2N; backlash ≤ 12 arcmin; efficiency ≥ 94 %.
- Allowable forces on the output shaft: radial 1200 N, axial 600 N; torsional stiffness 12 Nm/arcmin; service life > 30,000 h at S5 (> 15,000 h at S1).
- Output shaft Ø19 h6; input holes of FA080 are Ø 16, 19 mm, centering diameter for the motor (C5) - 50, 70, 80, 95 mm.
Tekniset tiedot
| Tyyppi | Planeettavaihde, koaksiaalinen, lähtöakselilla |
|---|---|
| Sarja | FA (FABGEAR) |
| Koko (mitat), mm | 80 |
| Välityssuhde | 1:30 |
| Portaiden määrä | 2 |
| Nimellinen lähtömomentti, Nm | 112 |
| Suurin (hätäpysäytys)momentti, Nm | 336 (3 × T2N) |
| Nimellinen tulopyörimisnopeus, min⁻¹ | 3 000 |
| Suurin tulopyörimisnopeus, min⁻¹ | 5 000 |
| Välys (backlash), arcmin | ≤ 12 |
| Hyötysuhde, % | ≥ 94 |
| Tuloakseli / reikä, mm | Ø19 (reikä kiristysholkilla) |
| Lähtöakseli, mm | Ø19 h6, kiilaurallinen |
| Soveltuu moottorille | Delta ECMA-C20807 |
| Tulolaippa | 7EV80A-70-SN2 — moottorille, koko 80 mm (keskitys Ø70, reikäjako Ø90, akseli Ø19) |
| Sallittu radiaali-/aksiaalikuorma, N | 1 200 / 600 |
| Vääntöjäykkyys | 12 Nm/arcmin |
| Melu, dB | ≤ 62 |
| Kotelointiluokka | IP65 |
| Voitelu | Synteettinen rasva (koko käyttöiäksi) |
| Asennusasento | Vapaa |
| Käyttölämpötila | −25 … +90 °C |
| Paino, kg | 2,8 (±2 %) |
| Tullinimike (CN/TARIC) | 8483 40 51 (8483405190) |
| Tulli tuotaessa kolmansista maista | 3,7 % |
