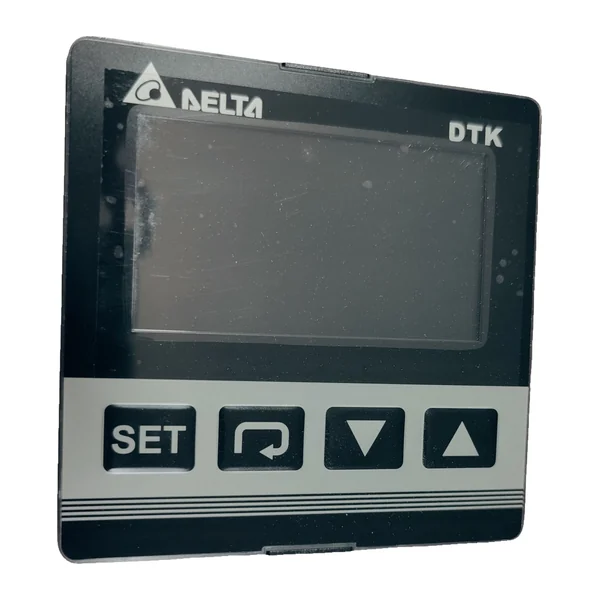

DTK9696R12 — Intelligent temperature controller Delta DTK series, 96 × 96 mm (1/4 DIN)
Fabricant: Delta Electronics · Référence: DTK9696R12
126,92 € TTC / pce105,77 € HT
Livraison sur demande — le délai est confirmé avec l’offre.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description du produit
Delta series DTK intelligent temperature controller, 96 x 96 mm (1/4 DIN), depth 60 mm, output: relay, 250 VAC, 5 A, 2 alarm outputs, RS-485 Modbus, power supply 100 ~ 240 VAC. Inputs: thermocouple K, J, T, E, N, R, S, B, L, U, TXK; Pt100, JPt100; Cu50, Ni120. Control: ON/OFF, PID (auto-tuning), manual; measurement period 0.1 s; LCD display - PV red / SV green.
Données techniques
| Série | DTK |
|---|---|
| Taille | 96 × 96 mm (1/4 DIN) |
| Sortie 1 | Relais, 250 VAC, 5 A |
| Communication | RS-485, Modbus ASCII / RTU |
| Alimentation | 100 ~ 240 VAC, 50 / 60 Hz |
| Nombre de sorties d’alarme | 2 |
| Code tarifaire (NC/TARIC) | 9032 10 20 (9032102090) |
| Droit de douane à l’importation de pays tiers | 2,8 % |
