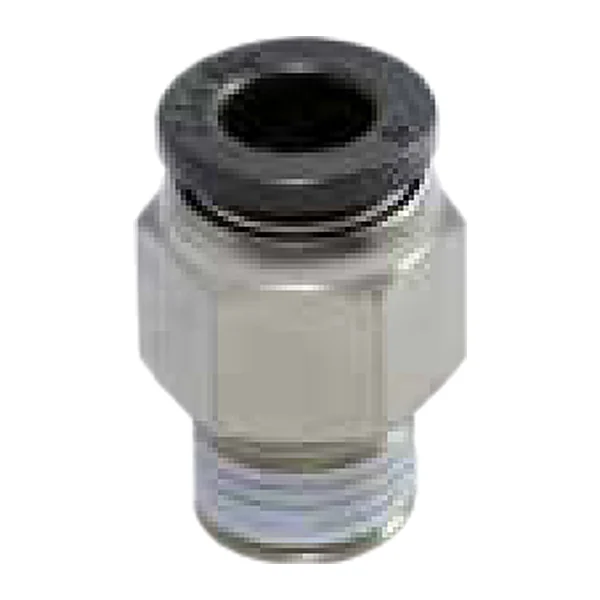

SQC3 4-M5 — Push-in fitting, straight Ø4 – M5, external thread, Chelic SQC3
Monaróir: Chelic · Cód: SQC3 4-M5
€2.06 CBL san áireamh / píosa€1.72 gan CBL
Ar fáil
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Cur síos ar an táirge
Quick connection straight Ø4 – M5, external thread, Chelic SQC3.
- SQ3 series - for PU or nylon tube (the SQ series without "3" is only for PU tube).
- Stainless steel collet, tube release by pressing the button (POM).
- Thread with sealant applied.
- Maximum pressure 9 kgf/cm² (900 kPa), test pressure 10 kgf/cm², vacuum up to −100 kPa, 5–60 °C.
- SQC3 4-M5: tube Ø4, thread M5, passage 2 mm, key 10 mm, L2 20.3 mm.
Sonraí teicniúla
| Cineál | Feisteas tapa díreach, le snáithe seachtrach |
|---|---|
| Sraith | SQ3 |
| Feadán, Ø mm | 4 |
| Snáithe na gcalafort | M5×0,8 |
| Poll tríd, mm | 2 |
| Méid spanóra, mm | 10 |
| Airde iomlán L2, mm | 20,3 |
| Fad an tsnáithe L1, mm | 3,5 |
| Brú oibriúcháin | suas le 0.9 MPa (9 kgf/cm²) |
| Brú tástála | 1,0 MPa (10 kgf/cm²) |
| Folús | suas le −100 kPa (10 Torr) |
| Teocht oibriúcháin | 5–60 °C |
| Ábhar | corp prás, nicil-phlátáilte; páirteanna plaisteacha NYLON, PBT, PP |
| Meán oibre | aer |
| Cód taraife (AC/TARIC) | 3917 40 00 (3917400099) |
| Dleacht ar allmhairí ó thríú tíortha | 6,5 % |
