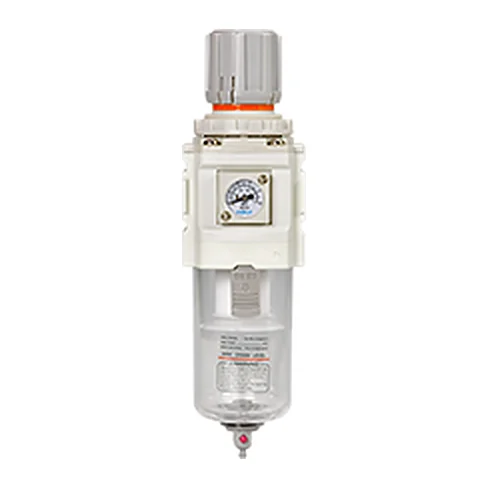

UFR 400-03-G-W — Filter regulator UFR 400, G 3/8, 5 µm, manual drain, square pressure gauge
Monaróir: Chelic · Cód: UFR 400-03-G-W
Praghas ar fhiosrúchán
Ar fáil
Cur síos ar an táirge
UFR 400 filter-regulator, G 3/8, 5 µm, manual drain, square pressure gauge.
- Code: UFR 400 – 03 (3/8) – G (PF thread) – W (manual drain valve); PC housing and square pressure gauge — no letter
- Square pressure gauge PG-22N – standard; PG-10A and relay PSN-41 – optional.
- Flow rate UFR-400-03: 4500 l/min (ANR).
- Accuracy: 5 µm; range: 0.5–8.5 kgf/cm² (50–850 kPa); max. 10 kgf/cm²; 5–60 °C
- Cup volume 80 cm³
- Modular connection with U series
- Drain: manual (W - drain valve)
Sonraí teicniúla
| Cineál | Scagaire-rialtóir |
|---|---|
| Sraith | UFR 400 |
| Snáithe na gcalafort | G 3/8 |
| Míne scagtha, µm | 5 |
| Raon rialála | 0,05–0,85 MPa (0,5–8,5 kgf/cm²; 50–850 kPa) |
| Brú oibriúcháin | uas. 1.0 MPa (10 kgf/cm²) |
| Sreabhadh, l/min | 4500 (ANR) |
| Draenáil | láimhe |
| Brúmhéadar | cearnach, ionsuite sa chorp (caighdeánach, gan litir sa chód; PG-22N) |
| Teocht oibriúcháin | 5–60 °C |
| Ábhar | corp — cóimhiotal alúmanaim (díréiteach); babhla — polacarbónáit (PC) |
| Cód taraife (AC/TARIC) | 8481 20 90 (8481209090) |
| Dleacht ar allmhairí ó thríú tíortha | 2,2 % |
