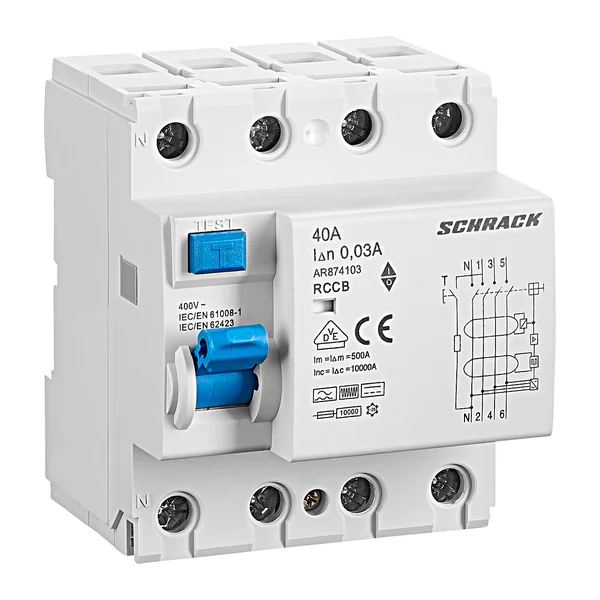

AR874103 — Residual current circuit breaker AMPARO, 4P, type B, 10kA, 30mA, 40A
Proizvođač: Schrack · Šifra: AR874103
488,16 € s PDV-om / kom.406,80 € bez PDV-a
Isporuka po narudžbi — rok se potvrđuje u ponudi.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Tehnički podaci
| Vrsta | Zaštitna strujna sklopka |
|---|---|
| Serija | AMPARO |
| Nazivna struja | 40 A |
| Polovi | 4P |
| Prekidna moć | 10 kA |
| Nazivna diferencijalna struja | 30 mA |
| Tip RCD-a | B |
| EAN | 9004840566758 |
| Neto masa, kg | 0,372 |
| Tarifna oznaka (KN/TARIC) | 8536 30 30 |
