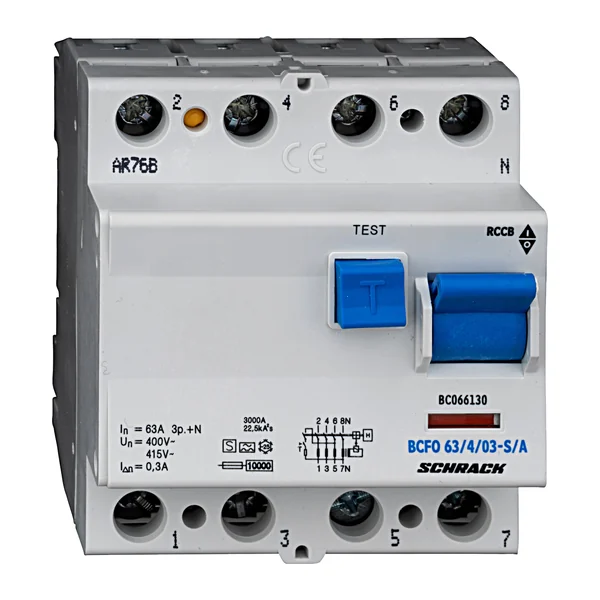

BC066130 — Residual current circuit breaker 63A, 4P, 300mA, type S, A, 10kA
Proizvođač: Schrack · Šifra: BC066130
242,52 € s PDV-om / kom.202,10 € bez PDV-a
Isporuka po narudžbi — rok se potvrđuje u ponudi.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Opis proizvoda
Residual current circuit breaker 63A, 4P, 300mA, type S, A, 10kA.
- BC series
- Type A (sensitive to pulsating DC residual current)
- Type S (selective)
- Product standard EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017, EN 61008-2-1:1994 + A11:1998, EN 50581:2012
Tehnički podaci
| Vrsta | Zaštitna strujna sklopka |
|---|---|
| Serija | BC |
| Nazivna struja | 63 A |
| Polovi | 4P |
| Prekidna moć | 10 kA |
| Nazivna diferencijalna struja | 300 mA |
| EAN | 9004840393958 |
| Neto masa, kg | 0,32 |
| Tarifna oznaka (KN/TARIC) | 8536 30 30 |
