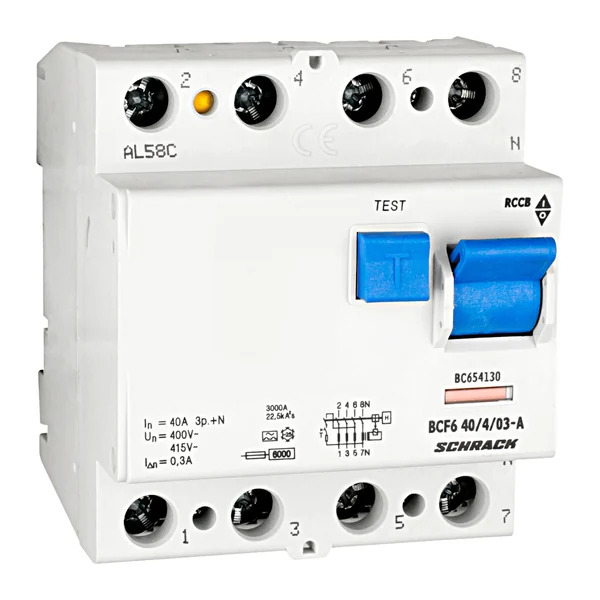

BC654130 — Residual current circuit breaker 40A, 4P, 300mA, type A, 6kA
Proizvođač: Schrack · Šifra: BC654130
67,61 € s PDV-om / kom.56,34 € bez PDV-a
Isporuka po narudžbi — rok se potvrđuje u ponudi.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Opis proizvoda
Residual current circuit breaker 40A, 4P, 300mA, type A, 6kA.
- BC series
- Type A (sensitive to pulsating DC residual current)
- Type: without time delay
- Product standard EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017, EN 61008-2-1:1994 + A11:1998, EN 50581:2012
Tehnički podaci
| Vrsta | Zaštitna strujna sklopka |
|---|---|
| Serija | BC |
| Nazivna struja | 40 A |
| Polovi | 4P |
| Prekidna moć | 6 kA |
| Nazivna diferencijalna struja | 300 mA |
| Tip RCD-a | A |
| EAN | 9004840394184 |
| Neto masa, kg | 0,32 |
| Tarifna oznaka (KN/TARIC) | 8536 30 30 |
