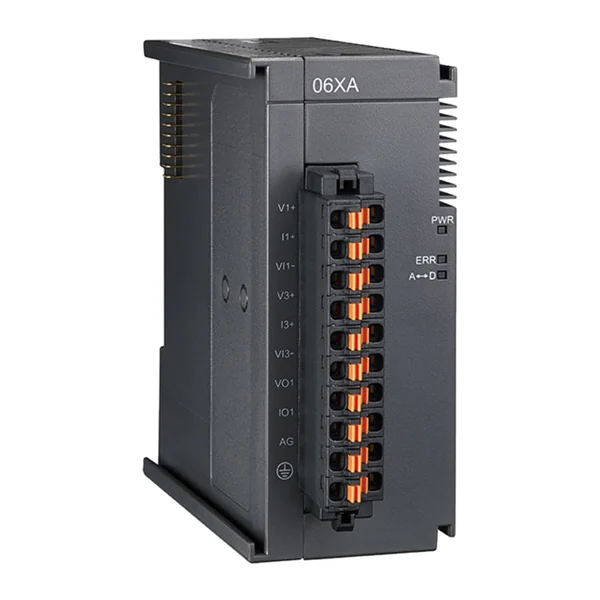

AS06XA-A — AS (Module) – 16-bit resolution for 4 analog inputs / 12-bit for 2 analog outputs, response time 2 ms
Produttore: Delta Electronics · Codice: AS06XA-A
Disponibile
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Descrizione del prodotto
AS06XA-A — Analog input/output module for AS series PLC · 4 inputs: 0–10 V, ±10 V, 0–5 V, ±5 V, 1–5 V, 0–20 mA, 4–20 mA, ±20 mA, 16-bit resolution · 2 outputs: ±10 V, 0–10 V, ±5 V, 0–5 V, 1–5 V, 0–20 mA, 4–20 mA, 12-bit resolution · Conversion time 2 ms per channel (inputs: 1 ms from firmware V1.02) · Error ±0.2 % at room temperature, ±0.5 % over the entire temperature range · Over-range detection for 1–5 V / 4–20 mA · The analog part is isolated from the digital part (500 V AC), the channels are not isolated from each other · External power supply 24 V DC (20.4–28.8 V DC) · Removable terminal block · Replacement only with power off.
Dati tecnici
| Serie | AS |
|---|---|
| Ingressi analogici | 4 |
| Uscite analogiche | 2 |
| Funzioni aggiuntive | Ingresso: 4 canali, 16 bit (1~5 V, 0~5 V, -5~5 V, 0~10 V, -10~10 V; 4~20 mA, 0~20 mA, -20~20 mA); uscita: 2 canali, 12 bit (0~10 V, -10~10 V, 4~20 mA, 0~20 mA) |
| Peso netto, kg | 0,145 |
| Codice doganale (NC/TARIC) | 8538 90 99 (8538909999) |
| Dazio all'importazione da paesi terzi | 1,7 % |
