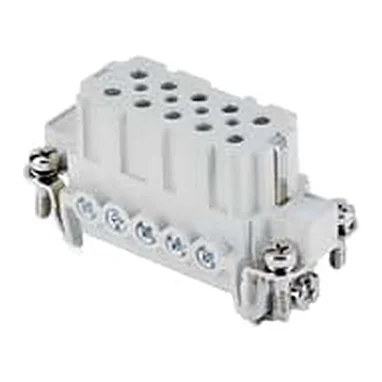

JDAF 10 — Connector insert, female insert (female contacts), 10 poles + PE, size 49.16, screw terminals, tin-plated contacts, 16 A / 250 V
Produttore: ILME · Codice: JDAF 10
7,80 € IVA inclusa / pz6,50 € IVA esclusa
Disponibile
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Descrizione del prodotto
JDA series. Connection: screw terminals. Without pressure plate – for wires with ferrules. Wire cross-section: 0.25–2.5 mm² (AWG 24–14). Contacts: turned, tin-plated. Data according to EN 61984: 16 A 250 V 4 kV 3; 16 A 230/400 V 4 kV 2. Voltage according to UL/CSA: 600V. Protection class: IP20 without housing, IP65/IP66 with housing. Operating temperature: −40…+125 °C. Material: polycarbonate (PC); contacts: copper alloy. Number of connections: ≥ 200.
Dati tecnici
| Serie | JDA |
|---|---|
| Peso, g | 43 |
| Confezione, pz | 30 |
| Tipo | Inserto |
| Sesso | femmina |
| Numero di poli | 10 + PE |
| Corrente, A | 16 |
| Tensione, V | 250 |
| Tipo di connessione | a vite |
| Dimensione | 49.16 |
| Descrizione nel listino ILME | FEMALE INSERT 10P 16A JEI |
| EAN | 8015747176316 |
| Peso lordo, kg | 0,0487 |
| Confezione: peso, kg | 1,46 |
| Codice doganale (NC/TARIC) | 8536 69 90 (8536699099) |
| Dazio all'importazione da paesi terzi | 2,3 % |
