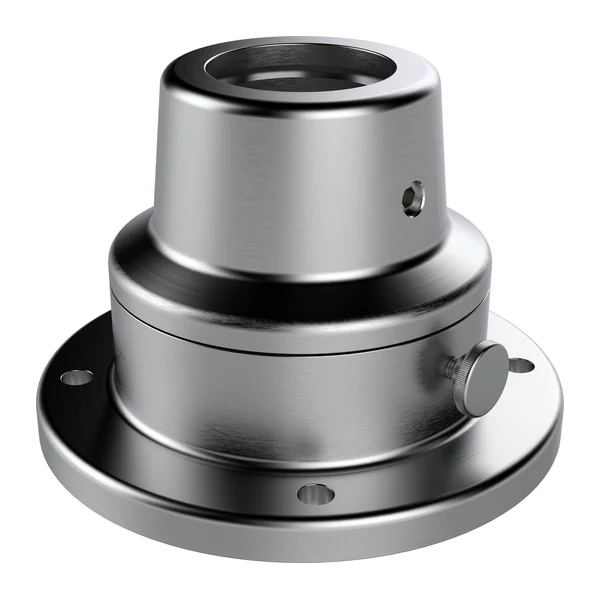

TK048.610 — Rotating top base with vertical outlet — Teknokol TK048
Produttore: Teknokol · Codice: TK048.610
Prezzo su preventivo
Fornitura su richiesta — i tempi vengono confermati con l'offerta.
Descrizione del prodotto
Rotating top base with vertical outlet — Teknokol TK048.
- Rotating base with a vertical outlet made of AISI 304 stainless steel for arms with a diameter of 48.3 mm, TK048 series.
- Mounts from the top, with four screws.
- Satin finish, protection class IP66 - for the food and pharmaceutical industries.
- Rotation angle ±165°
- Weight 4.11 kg, dimensions 150 × 105 × 150 mm (W × H × D)
Dati tecnici
| Tipo | Base |
|---|---|
| Sistema | TK048 |
| Materiale | acciaio inox AISI 304 |
| Colore | superficie satinata |
| Grado di protezione | IP66 |
| Esecuzione | girevole |
| Rotazione | ±165° |
| Peso, kg | 4,11 |
| Dimensioni, mm | 150 × 105 × 150 |
| Codice doganale (NC/TARIC) | 7326 90 98 (7326909890) |
| Dazio all'importazione da paesi terzi | 2,7 % |
