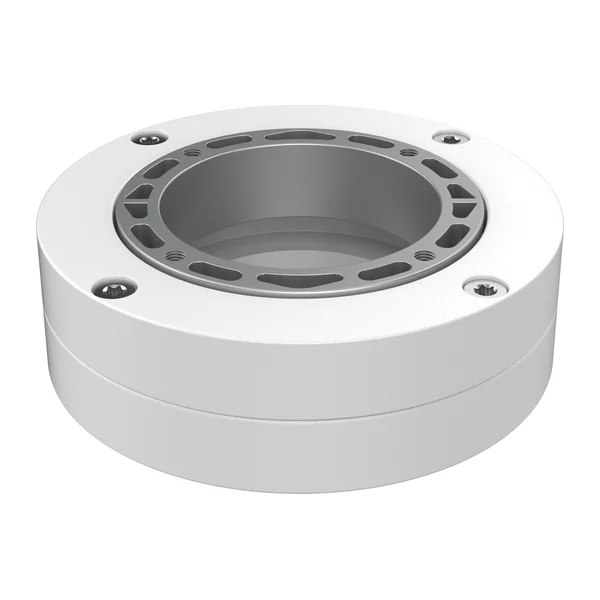

TK060.321 — Support arm system module TK060: rotating panel base without locking, Ø130 mm — Teknokol
Produttore: Teknokol · Codice: TK060.321
112,86 € IVA inclusa / pz94,05 € IVA esclusa
Disponibile
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Descrizione del prodotto
Rotating flange Ø130 mm for armless console — Teknokol TK060.
- Rotating joint directly to the surface when the arm is not needed; for deep housings.
- Weight 1.1 kg, dimensions 132 × 42 × 132 mm (W × H × D), rotation 310°.
- According to the compatibility table, it fits ECO 120 and ECO 150 enclosures (for ECO 060 and 090, an adapter is required — only available with screw or hinged intermediate connection).
Dati tecnici
| Tipo | Flangia di collegamento |
|---|---|
| Sistema | TK060 |
| Esecuzione | girevole |
| Materiale | alluminio |
| Colore | RAL 7035 |
| Peso, kg | 1,1 |
| Dimensioni, mm | 132 × 42 × 132 |
| Rotazione | 310° |
| Grado di protezione | IP65 |
| Codice doganale (NC/TARIC) | 7616 99 90 (7616999099) |
| Dazio all'importazione da paesi terzi | 6 % |
