TK120.1750 — Arm profile 1750 mm — Teknokol TK120
Produttore: Teknokol · Codice: TK120.1750
Prezzo su preventivo
Fornitura su richiesta — i tempi vengono confermati con l'offerta.
Descrizione del prodotto

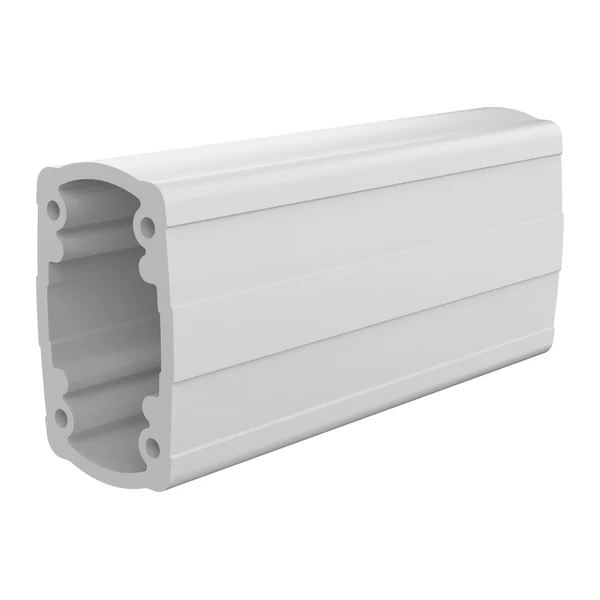

Arm profile 1750 mm — Teknokol TK120.
- Aluminum mounting profile for the TK120 system, cut to 1750 mm; cables run inside the profile.
- Dimensions: 75 × 120 mm, weight: 11.375 kg, color: RAL 7035.
- Load capacity of the TK120 system: 1800 N (diagram 1) / 1500 N (diagram 2) up to 1000 mm; arm up to 3000 mm.
Dati tecnici
| Tipo | Profilo |
|---|---|
| Sistema | TK120 |
| Esecuzione | fisso |
| Materiale | alluminio |
| Colore | RAL 7035 |
| Peso, kg | 11,375 |
| Dimensioni, mm | 75 × 120 × 1750 |
| Lunghezza, mm | 1750 |
| Grado di protezione | IP65 |
| Carico statico del sistema | 1800 N (schema 1) / 1500 N (schema 2) fino a 1000 mm; braccio fino a 3000 mm |
| Codice nel catalogo 2021–2022 | TK120.175 |
| Codice doganale (NC/TARIC) | 7604 21 00 (7604210000) |
| Dazio all'importazione da paesi terzi | 7,5 % |
