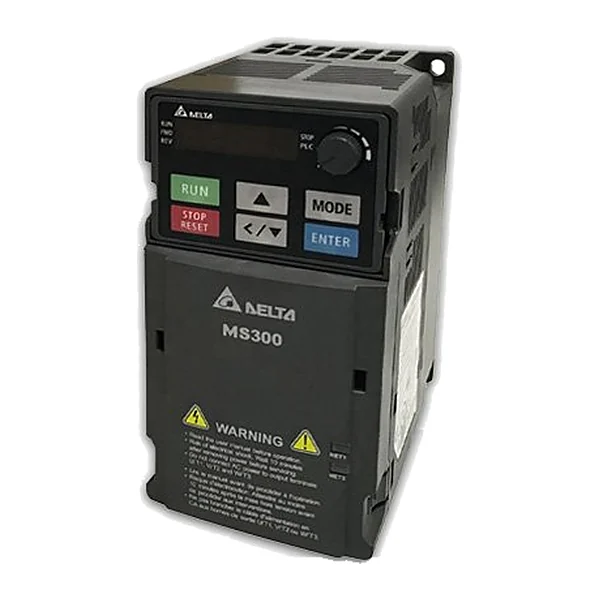

VFD4A2MS43ANSAA — Frequency inverter VFD-MS300, 1.5 kW, 460 V AC, 3ph
Produttore: Delta Electronics · Codice: VFD4A2MS43ANSAA
Fornitura su richiesta — i tempi vengono confermati con l'offerta.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Descrizione del prodotto
VFD4A2MS43ANSAA — frequency inverter VFD-MS300, 1.5 kW, 460 V AC three-phase (380–480 V AC) · rated output current HD 4.2 A / ND 4.6 A · IP20 · without built-in EMC filter · built-in Safe Torque Off (STO) — ISO 13849-1 Cat. 3 PL d, EN 61508 SIL 2 · built-in brake chopper · control methods V/F, SVC and sensorless FOC · motors: induction (IM) and permanent magnet (IPM and SPM) · built-in PLC (2k steps) · built-in Modbus · max. output frequency 599 Hz · overload HD: 150 % for 60 s and 200 % for 3 s; ND: 120 % for 60 s and 150 % for 3 s.
Dati tecnici
| Serie | VFD-MS300 |
|---|---|
| Potenza, kW | 1,5 |
| Alimentazione | 460 V AC, 3 fasi |
| Corrente ND, A | 4,6 |
| Corrente HD, A | 4,2 |
| Comunicazione | RS-485 Modbus — integrato; schede opzionali: PROFIBUS DP, DeviceNet, Modbus TCP, EtherNet/IP, CANopen, EtherCAT |
| STO | integrata (ISO 13849-1 cat. 3 PL d, EN 61508 SIL 2) |
| Filtro EMC | esterno (opzionale) |
| Opzioni | tastierino digitale KPC-CC01, scheda di comunicazione, resistenza di frenatura, reattanze AC / DC, piastra di montaggio adattatrice |
| Certificazioni | UL, CE, RoHS, RCM, TÜV, REACH |
| Peso netto, kg | 1 |
| Codice doganale (NC/TARIC) | 8504 40 95 (8504409590) |
| Dazio all'importazione da paesi terzi | 0 % |
