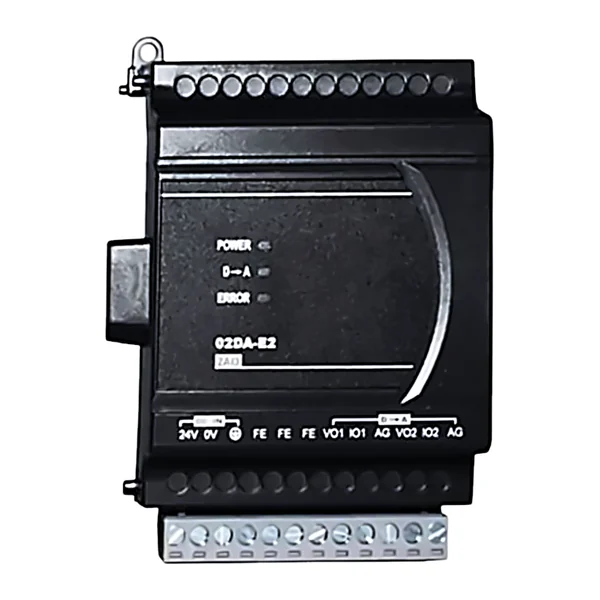

DVP02DA-E2 — DVP-EX/ES (Module) – analog output module, 2 channels, 14 bits
Gamintojas: Delta Electronics · Kodas: DVP02DA-E2
Pristatymas pagal užsakymą — terminas patvirtinamas pasiūlyme.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Produkto aprašymas
DVP02DA-E2 — Analog output module, 2 channels for DVP-ES2 / EX2 / ES3 / EX3 controllers (DVP-E series) · Output: voltage -10…+10 V, current 0–20 mA or 4–20 mA · Resolution: 14 bits (digital range -32,000…+32,000 for voltage, 0…+32,000 for current) · Conversion time: 400 µs per channel · Accuracy: ±0.5 % of full scale at 25 °C, ±1 % at 0–55 °C · Load: voltage 1 kΩ–2 MΩ, current 0–500 Ω · Power supply: 24 V DC (20.4–28.8 V) · Removable terminal block (5 mm pitch) · Up to 8 modules per controller, without occupying digital inputs/outputs · Operating temperature: 0–55 °C, IP20
Techniniai duomenys
| Serija | DVP-EX / ES |
|---|---|
| Analoginiai išėjimai | 2 |
| Papildomos funkcijos | Analoginiai išėjimai 2 taškai: įtampa -10~+10 V / srovė 0~20 mA, 4~20 mA; 14 bitų |
| Grynasis svoris, kg | 0,194 |
| Muitų tarifo kodas (KN/TARIC) | 8538 90 99 (8538909999) |
| Muitas importuojant iš trečiųjų šalių | 1,7 % |
