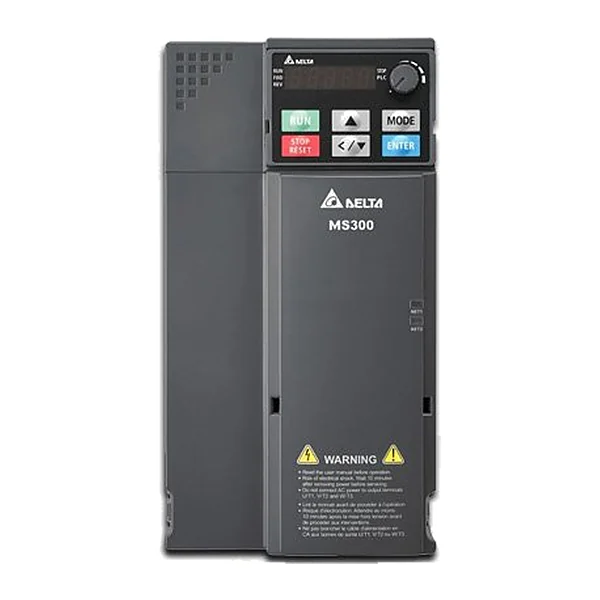

VFD25AMS23ANSAA — Frequency inverter VFD-MS300, 5.5 kW, 230 V AC, 3ph
Gamintojas: Delta Electronics · Kodas: VFD25AMS23ANSAA
Pristatymas pagal užsakymą — terminas patvirtinamas pasiūlyme.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Produkto aprašymas
VFD25AMS23ANSAA — frequency inverter VFD-MS300, 5.5 kW, 230 V AC three-phase (200–240 V AC) · rated output current HD 25 A / ND 27 A · IP20 · without built-in EMC filter · built-in Safe Torque Off (STO) — ISO 13849-1 Cat. 3 PL d, EN 61508 SIL 2 · built-in brake chopper · control methods V/F, SVC and sensorless FOC · motors: induction (IM) and permanent magnet (IPM and SPM) · built-in PLC (2k steps) · built-in Modbus · max. output frequency 599 Hz · overload HD: 150 % for 60 s and 200 % for 3 s; ND: 120 % for 60 s and 150 % for 3 s.
Techniniai duomenys
| Serija | VFD-MS300 |
|---|---|
| Galia, kW | 5,5 |
| Maitinimas | 230 V AC, 3f |
| Srovė ND, A | 27 |
| Srovė HD, A | 25 |
| Ryšys | RS-485 Modbus — integruotas; pasirenkamos plokštės: PROFIBUS DP, DeviceNet, Modbus TCP, EtherNet/IP, CANopen, EtherCAT |
| STO | integruota (ISO 13849-1 kat. 3 PL d, EN 61508 SIL 2) |
| EMC filtras | išorinis (pasirinktinai) |
| Pasirinktys | skaitmeninis pultas KPC-CC01, ryšio plokštė, stabdymo rezistorius, AC / DC droseliai, pereinamoji montavimo plokštė |
| Sertifikatai | UL, CE, RoHS, RCM, TÜV, REACH |
| Grynasis svoris, kg | 2,07 |
| Muitų tarifo kodas (KN/TARIC) | 8504 40 95 (8504409590) |
| Muitas importuojant iš trečiųjų šalių | 0 % |
