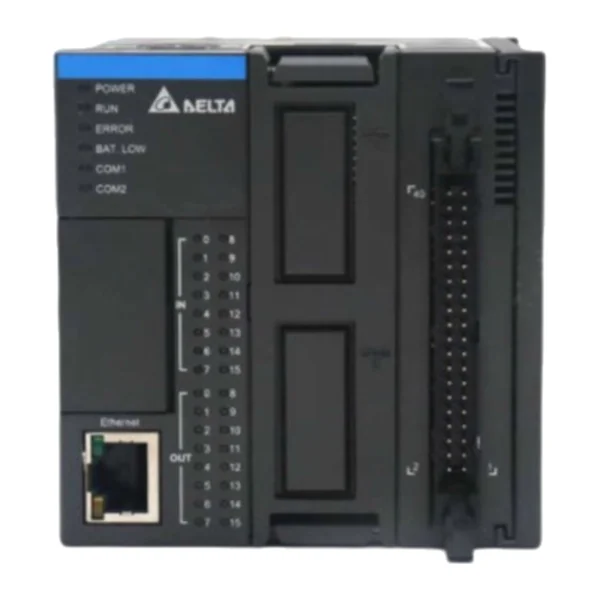

AS324MT-A — AS300 (Controller) — 12DI, 12DO(NPN)
Manifattur: Delta Electronics · Kodiċi: AS324MT-A
Kunsinna fuq ordni — iż-żmien jiġi kkonfermat mal-offerta.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Deskrizzjoni tal-prodott
AS324MT-A — AS300 processor · 12 digital inputs / 12 digital outputs, differential / NPN · Differential inputs + processor outputs: 4 + 4 · High-speed counters: 2 channels 4 MHz (differential) + 4 channels 200 kHz · Pulse outputs: 2 axes 4 MHz (differential) + 4 axes 200 kHz · MIL connector · 128k step program memory · Built-in communication: USB, RS-485 ×2, Ethernet · 2 slots for function cards · Micro SD card up to 32 GB · LD instruction execution time: 25 ns · Up to 32 expansion modules (up to 16 analog / 4 communication), 1024 input/output points
Data teknika
| Serje | AS300 (kontrollur) |
|---|---|
| Inputs diġitali | 12 |
| Memorja tal-programm | 128 K passi |
| Outputs diġitali | 12 |
| Inputs analogi | 0 |
| Outputs analogi | 0 |
| Numru ta' portijiet serjali | 2 |
| Portijiet serjali | COM1 RS-485, COM2 RS-485 |
| Ethernet | 1 port |
| USB | 1 × Mini-USB (USB 2.0) |
| Slot tal-karta | micro SD (sa 32 GB) |
| Komunikazzjoni | Modbus, Modbus TCP, EtherNet/IP, CANopen DS301 (bil-karta AS-FCOPM) |
| Karatteristiċi addizzjonali | Outputs differenzjali/NPN; inputs/outputs differenzjali tal-proċessur: 4 inputs + 4 outputs; outputs ta' impulsi: 2 assi 4 MHz (diff.) + 4 assi 200 kHz; kontaturi ta' veloċità għolja: 2 kanali 4 MHz (diff.) + 4 kanali 200 kHz; 2 slots għal karti tal-funzjoni |
| Piż nett, kg | 0,26 |
| Kodiċi tariffarju (NM/TARIC) | 8537 10 91 (8537109199) |
| Dazju fuq l-importazzjoni minn pajjiżi terzi | 2,1 % |
