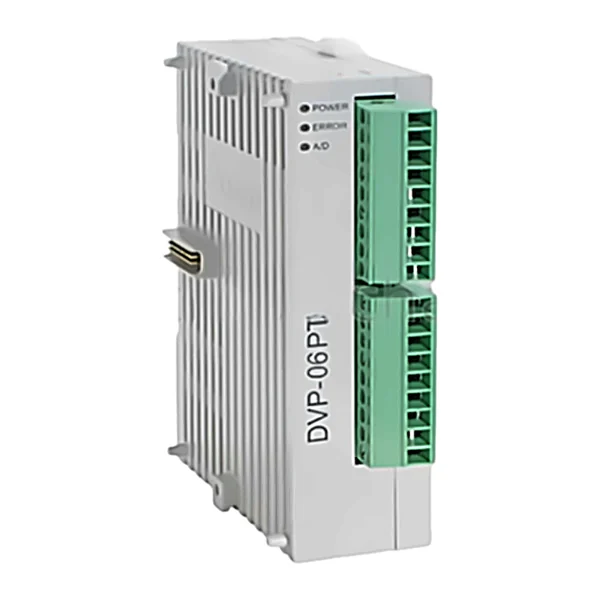

DVP06PT-E2 — DVP-EX/ES (Module) – Temperature measurement module, 6 RTD inputs
Manifattur: Delta Electronics · Kodiċi: DVP06PT-E2
Kunsinna fuq ordni — iż-żmien jiġi kkonfermat mal-offerta.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Deskrizzjoni tal-prodott
DVP06PT-E2 — Temperature measurement module, 6 RTD inputs for DVP-ES2 / EX2 / ES3 / EX3 controllers (DVP-E series) · Sensors (2- or 3-wire connection): Pt100, Pt1000, Ni100, Ni1000, Cu50, Cu100, JPt100, LG-Ni1000; resistance: 0–300 Ω / 0–3000 Ω · Resolution: 0.1 °C · Conversion time: 200 ms per channel · Built-in PID temperature controller · Accuracy: ±0.3% at 25 °C, ±0.6% at 0–55 °C · Channels are isolated from each other (optocouplers) · Power supply: 24 V DC (20.4–28.8 V) · Removable terminal block (5 mm pitch) · Up to 8 modules can be connected to a single controller without using digital inputs/outputs · Operating temperature: 0–55 °C, IP20
Data teknika
| Serje | DVP-EX / ES |
|---|---|
| Inputs PT | 6 |
| Karatteristiċi addizzjonali | 6 inputs RTD (Pt100, Pt1000, Ni100, Ni1000) jew reżistenza 0~300 Ω; 16 bit; b'regolazzjoni PID tat-temperatura |
| Piż nett, kg | 0,176 |
| Kodiċi tariffarju (NM/TARIC) | 8538 90 99 (8538909999) |
| Dazju fuq l-importazzjoni minn pajjiżi terzi | 1,7 % |
