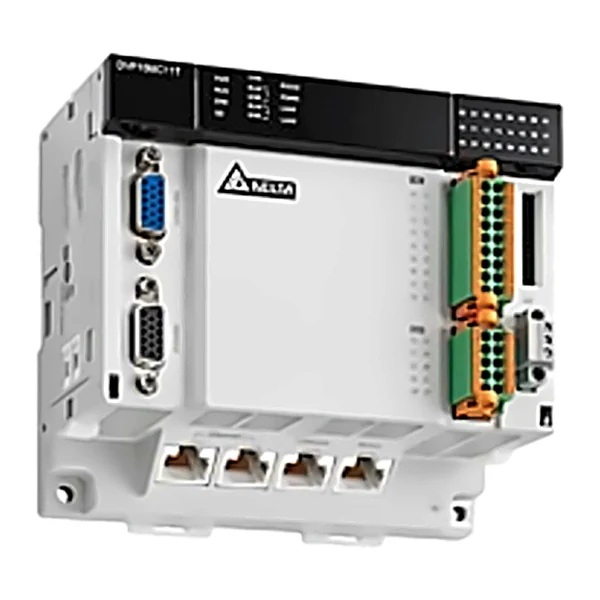

DVP15MC11T — DVP-MC (Controller) – Motion controller, 24 VDC, CANopen DS402, 24 axes, 16 inputs, 8 NPN outputs
Manifattur: Delta Electronics · Kodiċi: DVP15MC11T
Kunsinna fuq ordni — iż-żmien jiġi kkonfermat mal-offerta.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Deskrizzjoni tal-prodott
DVP15MC11T — motion controller, DVP-MC series, up to 24 axes via CANopen · 24 V DC power supply · 16 inputs and 8 NPN outputs (16 fast inputs, 8 fast outputs) · CANopen motion port (DS402) up to 1 Mbps, distance up to 100 m (at 500 kbps); 1 CANopen port as master or slave · 2 Ethernet ports, RS-232 and RS-485, SD card slot · 2 incremental encoders and 1 SSI absolute encoder · Program 20 MB, data 20 MB; synchronization: 4 axes in 2 ms, 8 axes in 4 ms; data type LREAL · Electronic gearbox, electronic cam (2048 points), rotary cutting; G-code: 8-axis linear/arc/helical interpolation · Left DVP-S modules (up to 8, analog), right DVP-S modules (240 DI, 240 DO and 8 special)
Data teknika
| Serje | DVP-MC (kontrollur) |
|---|---|
| Inputs diġitali | 16 |
| Outputs diġitali | 8 |
| Memorja tal-programm | 20 MB |
| Inputs analogi | 0 |
| Outputs analogi | 0 |
| Numru ta' portijiet serjali | 2 |
| Portijiet serjali | RS-232, RS-485 |
| Ethernet | 2 portijiet |
| USB | xejn |
| Slot tal-karta | Karta SD |
| Fieldbus | CANopen (port standard, master/slave), CANopen (port tal-moviment) |
| Komunikazzjoni | CANopen, Modbus (RS-485) |
| Karatteristiċi addizzjonali | Outputs NPN; jikkontrolla sa 24 assi; 16-il input veloċi / 8 outputs veloċi; 2 enkoders inkrementali + 1 enkoder assolut SSI |
| Kodiċi tariffarju (NM/TARIC) | 8537 10 91 (8537109199) |
| Dazju fuq l-importazzjoni minn pajjiżi terzi | 2,1 % |
