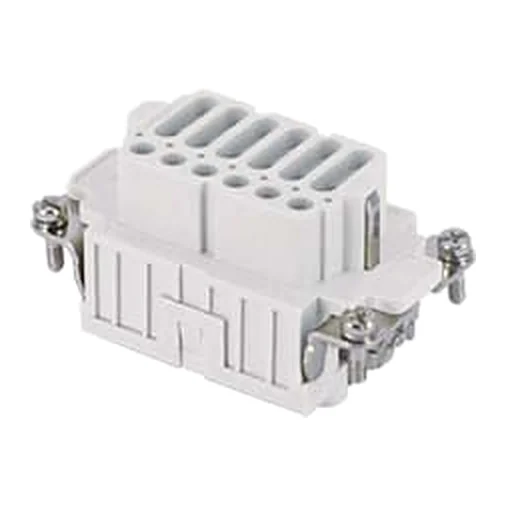

JDSF 18 — Connector insert, female insert (female contacts), 18 poles, size 57.27, spring terminals, tin-plated contacts, 10 A / 400 V
Manifattur: ILME · Kodiċi: JDSF 18
€15.58 VAT inkluża / biċċa€12.98 mingħajr VAT
Disponibbli
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Deskrizzjoni tal-prodott
JDS series. Connection: spring terminals. Conductor cross-section: 0.14–2.5 mm² (AWG 26–14). Contacts: turned, tin-plated. Data according to EN 61984: 10 A 400 V 6 kV 3; 10 A 400/690 V 6 kV 2. Voltage according to UL/CSA: 600V. Protection rating: IP20 without enclosure, IP65/IP66/IP68/IP69 with enclosure. Operating temperature: −40…+125 °C. Material: polycarbonate (PC); contacts: copper alloy. Number of connections: ≥ 200.
Data teknika
| Serje | JDS |
|---|---|
| Piż, g | 71 |
| Ippakkjar, biċċiet | 30 |
| Tip | Insert |
| Sess | femminili |
| Numru ta’ poli | 18 + PE |
| Kurrent, A | 10 |
| Vultaġġ, V | 400 |
| Metodu ta’ konnessjoni | bil-molla |
| Daqs | 57.27 |
| Deskrizzjoni fil-lista tal-prezzijiet ta’ ILME | SPR F INSERT 18P 10A JEI |
| EAN | 8015747201940 |
| Piż gross, kg | 0,085 |
| Ippakkjar: piż, kg | 2,55 |
| Kodiċi tariffarju (NM/TARIC) | 8536 69 90 (8536699099) |
| Dazju fuq l-importazzjoni minn pajjiżi terzi | 2,3 % |
