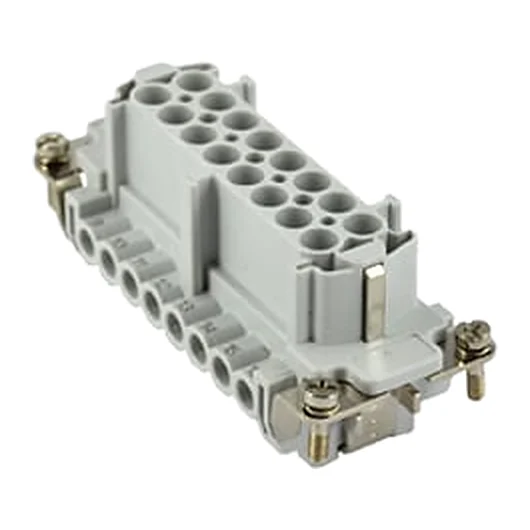

JNEF 16 — Connector insert, female insert (female contacts), 16 poles + PE, size 77.27, screw terminals, tin-plated contacts, 16 A / 500 V
Manifattur: ILME · Kodiċi: JNEF 16
€10.01 VAT inkluża / biċċa€8.34 mingħajr VAT
Disponibbli
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Deskrizzjoni tal-prodott
JNE series. Connection: screw terminals. With pressure plate – also for wires without ferrules. Wire cross-section: 0.5–4 mm² (AWG 20–12). Contacts: turned, tin-plated. Data according to EN 61984: 16 A 500 V 6 kV 3; 16 A 400/690 V 6 kV 2. Voltage according to UL/CSA: 600V. Degree of protection: IP20 without housing, IP65/IP66/IP68/IP69 in housing. Operating temperature: −40…+125 °C. Material: polycarbonate (PC); contacts: copper alloy. Number of connections: ≥ 200.
Data teknika
| Serje | JNE |
|---|---|
| Piż, g | 82 |
| Ippakkjar, biċċiet | 80 |
| Tip | Insert |
| Sess | femminili |
| Numru ta’ poli | 16 + PE |
| Kurrent, A | 16 |
| Vultaġġ, V | 500 |
| Metodu ta’ konnessjoni | bil-vit |
| Daqs | 77.27 |
| Deskrizzjoni fil-lista tal-prezzijiet ta’ ILME | FEMALE INSERT 16P 16A JEI |
| EAN | 8015747204392 |
| Piż gross, kg | 0,0934 |
| Ippakkjar: piż, kg | 7,47 |
| Kodiċi tariffarju (NM/TARIC) | 8536 69 90 (8536699099) |
| Dazju fuq l-importazzjoni minn pajjiżi terzi | 2,3 % |
