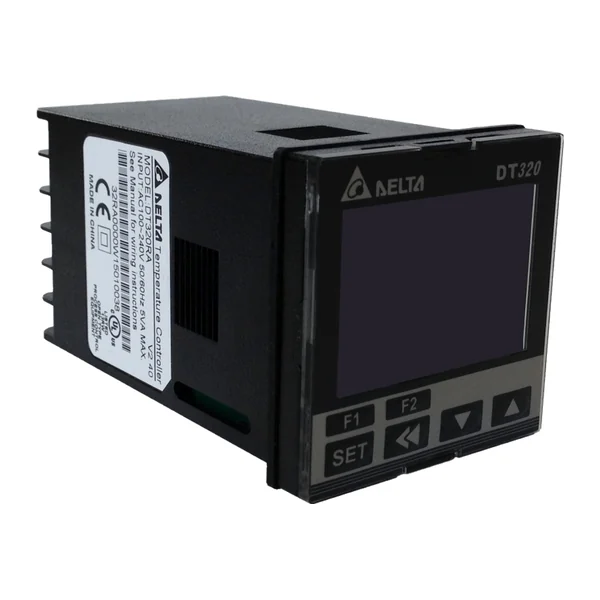

DT320CA — Intelligent temperature controller Delta DT3 series, 48 × 48 mm (1/16 DIN), output 1: DC current, 4 ~ 20 mA, 2 alarm relay outputs (250 VAC, 3 A), supply 100 ~ 240 VAC, 50 / 60 Hz
Fabrikant: Delta Electronics · Code: DT320CA
€ 99,50 incl. btw / st.€ 82,92 excl. btw
Levering op aanvraag — de levertijd wordt in de offerte bevestigd.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Productbeschrijving
Delta series DT3 intelligent temperature controller, 48 × 48 mm (1/16 DIN), output 1: constant current, 4 ~ 20 mA, 2 alarm relay outputs (250 VAC, 3 A), power supply 100 ~ 240 VAC, 50 / 60 Hz. Inputs: thermocouple K, J, T, E, N, R, S, B, L, U, TXK; Pt100, JPt100; Cu50, Ni120; 0~5 V, 0~10 V, 0~20 mA, 4~20 mA, 0~50 mV. Control: PID, programmable PID (ramp/soak), fuzzy logic, auto-tuning, ON/OFF, manual; measurement period 0.1 s; tri-color LCD display; user buttons F1 / F2. Modular: optional cards for output 2, event, CT, remote setpoint and retransmission.
Technische gegevens
| Serie | DT3 |
|---|---|
| Grootte | 48 × 48 mm (1/16 DIN) |
| Uitgang 1 | Gelijkstroom, 4 ~ 20 mA |
| Uitgang 2 | Geen (extra kaart DT3-R / V / C / L) |
| Communicatie | Geen (optie: uitbreidingsmodule DT3-20ECOM) |
| Voeding | 100 ~ 240 VAC, 50 / 60 Hz |
| Aantal alarmuitgangen | 2 |
| Douanetariefcode (GN/TARIC) | 9032 10 20 (9032102090) |
| Invoerrecht uit derde landen | 2,8 % |
