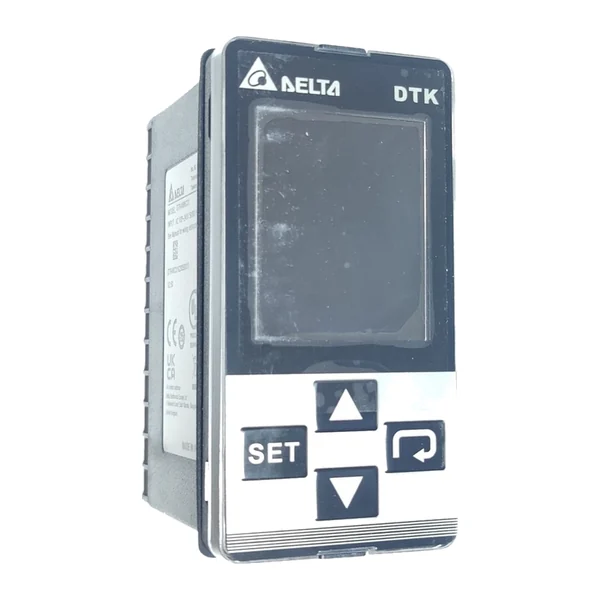

DTK4896C02 — Intelligent temperature controller Delta DTK series, 48 × 96 mm (1/8 DIN)
Fabrikant: Delta Electronics · Code: DTK4896C02
€ 89,35 incl. btw / st.€ 74,46 excl. btw
Levering op aanvraag — de levertijd wordt in de offerte bevestigd.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Productbeschrijving
Delta DTK series intelligent temperature controller, 48 x 96 mm (1/8 DIN), depth 60 mm, output: DC current, 4 ~ 20 mA, 2 alarm outputs, power supply 100 ~ 240 VAC. Inputs: thermocouple K, J, T, E, N, R, S, B, L, U, TXK; Pt100, JPt100; Cu50, Ni120. Control: ON / OFF, PID (auto-tuning), manual; measurement period 0.1 s; LCD display - PV red / SV green.
Technische gegevens
| Serie | DTK |
|---|---|
| Grootte | 48 × 96 mm (1/8 DIN) |
| Uitgang 1 | Gelijkstroom, 4 ~ 20 mA |
| Communicatie | Geen |
| Voeding | 100 ~ 240 VAC, 50 / 60 Hz |
| Aantal alarmuitgangen | 2 |
| Douanetariefcode (GN/TARIC) | 9032 10 20 (9032102090) |
| Invoerrecht uit derde landen | 2,8 % |
Documenten
