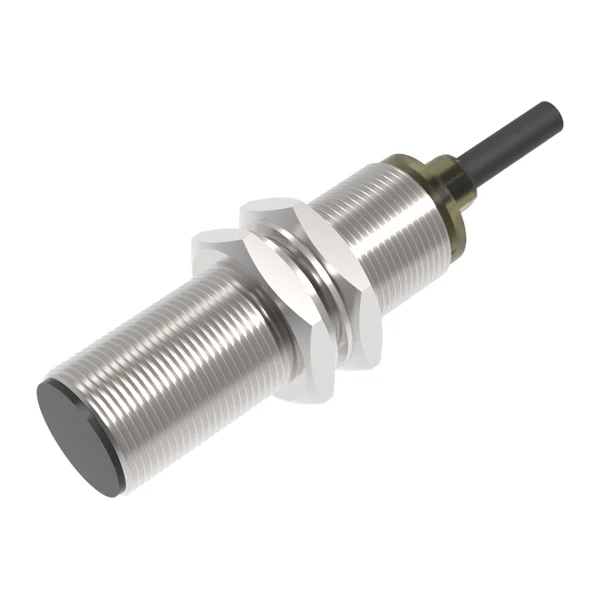

TLF18-08PC — Inductive sensor M18, flush, 8 mm, PNP NC, cable 2 m, 3 cores
Fabrikant: Akusense · Code: TLF18-08PC
€ 34,27 incl. btw / st.€ 28,56 excl. btw
Op voorraad
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technische gegevens
| Categorie | Inductieve sensoren |
|---|---|
| Serie | TL |
| Uitvoering | dubbele schakelafstand |
| Werkingsprincipe | Inductief |
| Vorm van de behuizing | Cilindrisch met schroefdraad |
| Grootte | M18 |
| Montage | Inbouw (flush) |
| Bereik, mm | 8 |
| Bereik | Sn = 8 mm |
| Zekere schakelafstand, mm | 6,4 |
| Uitgang | PNP |
| Uitgangsfunctie | NC |
| Voeding | 10–30 V DC ±10 % |
| Belasting, mA | 150 |
| Frequentie, Hz | 500 |
| Aansluiting | Kabel 2 m, 3 aders |
| Aansluitingstype | Kabel |
| Beschermingsgraad | IP67 |
| Materiaal van de behuizing | Vernikkeld messing |
| Materiaal van het detectievlak | PBT |
| Indicatie | Rode led |
| Beveiligingen | ompoling, kortsluiting, overbelasting |
| Bedrijfstemperatuur | −25 … +70 °C |
| Min. temperatuur, °C | -25 |
| Max. temperatuur, °C | 70 |
| Afmetingen | M18 × 63 mm |
| Gewicht, g | 103 |
| Herhaalnauwkeurigheid | ≤ 3 % |
| Hysterese | ≤ 15 % |
| Meegeleverd | Moeren |
| Standaardobject | Fe 24 × 24 × 1 mm (St37) |
| Douanetariefcode (GN/TARIC) | 8536 50 19 (8536501900) |
| Invoerrecht uit derde landen | 0 % |
