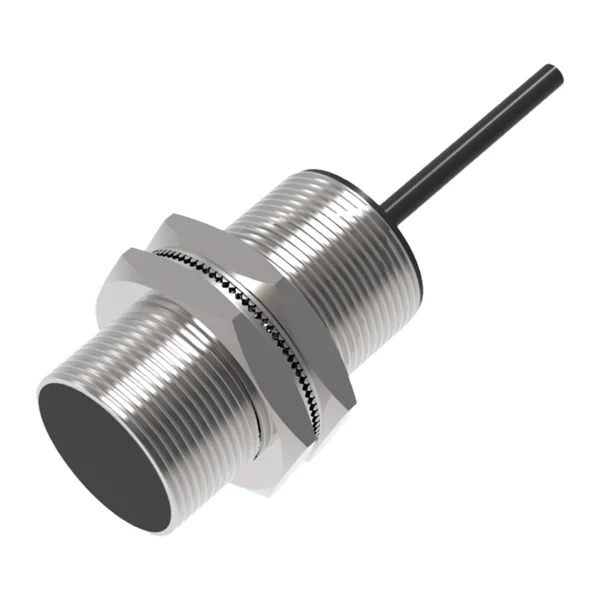

TYF30-22PO — Inductive sensor M30, flush, 22 mm, PNP NO, cable 2 m, 3 cores
Fabrikant: Akusense · Code: TYF30-22PO
€ 79,72 incl. btw / st.€ 66,43 excl. btw
Levering op aanvraag — de levertijd wordt in de offerte bevestigd.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technische gegevens
| Categorie | Inductieve sensoren |
|---|---|
| Serie | TY |
| Uitvoering | drievoudige schakelafstand |
| Werkingsprincipe | Inductief |
| Vorm van de behuizing | Cilindrisch met schroefdraad |
| Grootte | M30 |
| Montage | Inbouw (flush) |
| Bereik, mm | 22 |
| Bereik | Sn = 22 mm |
| Zekere schakelafstand, mm | 17,6 |
| Uitgang | PNP |
| Uitgangsfunctie | NO |
| Voeding | 10–30 V DC ±10 % |
| Belasting, mA | 150 |
| Frequentie, Hz | 150 |
| Aansluiting | Kabel 2 m, 3 aders |
| Aansluitingstype | Kabel |
| Beschermingsgraad | IP67 |
| Materiaal van de behuizing | Vernikkeld messing |
| Materiaal van het detectievlak | PBT |
| Indicatie | Rode led |
| Beveiligingen | ompoling, kortsluiting, overbelasting |
| Bedrijfstemperatuur | −25 … +70 °C |
| Min. temperatuur, °C | -25 |
| Max. temperatuur, °C | 70 |
| Afmetingen | M30 × 54 mm |
| Gewicht, g | 150 |
| Herhaalnauwkeurigheid | ≤ 5 % |
| Hysterese | ≤ 15 % |
| Meegeleverd | Moeren |
| Kleinste object | staal Fe 37 (St37) |
| Douanetariefcode (GN/TARIC) | 8536 50 19 (8536501900) |
| Invoerrecht uit derde landen | 0 % |
