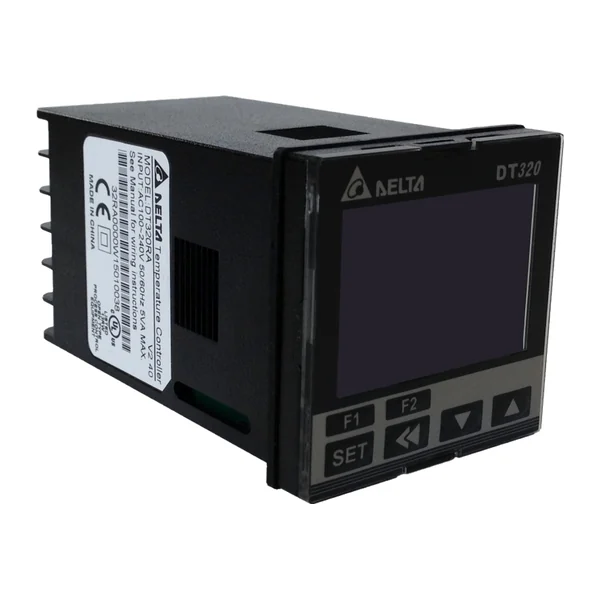

DT320VA — Intelligent temperature controller Delta DT3 series, 48 × 48 mm (1/16 DIN), output 1: pulse voltage for SSR, 12 VDC (-10 ~ +20 %), 2 alarm relay outputs (250 VAC, 3 A), supply 100 ~ 240 VAC, 50 / 60 Hz
Fabricante: Delta Electronics · Código: DT320VA
99,50 € com IVA / un.82,92 € sem IVA
Fornecimento por encomenda — o prazo é confirmado com o orçamento.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Descrição do produto
Delta DT3 series intelligent temperature controller, 48 x 48 mm (1/16 DIN), Output 1: pulsed voltage for SSR, 12 VDC (-10 ~ +20 %), 2 alarm relay outputs (250 VAC, 3 A), power supply 100 ~ 240 VAC, 50 / 60 Hz. Inputs: thermocouples K, J, T, E, N, R, S, B, L, U, TXK; Pt100, JPt100; Cu50, Ni120; 0~5 V, 0~10 V, 0~20 mA, 4~20 mA, 0~50 mV. Control: PID, programmable PID (ramp/soak), fuzzy logic, auto-tuning, ON/OFF, manual; measurement period 0.1 s; tri-color LCD display; user buttons F1 / F2. Modular: optional modules for output 2, event, CT, remote setpoint and retransmission.
Dados técnicos
| Série | DT3 |
|---|---|
| Tamanho | 48 × 48 mm (1/16 DIN) |
| Saída 1 | Tensão pulsada para SSR, 12 VDC (-10 ~ +20 %) |
| Saída 2 | Nenhum (placa adicional DT3-R / V / C / L) |
| Comunicação | Nenhum (opção: módulo de expansão DT3-20ECOM) |
| Alimentação | 100 ~ 240 VAC, 50 / 60 Hz |
| Número de saídas de alarme | 2 |
| Código pautal (NC/TARIC) | 9032 10 20 (9032102090) |
| Direito aduaneiro na importação de países terceiros | 2,8 % |
