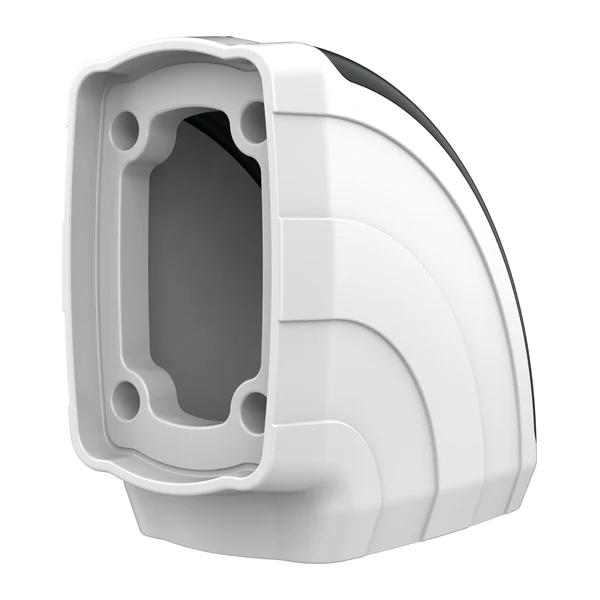

TK045.420 — Corner joint 90°, fixed — Teknokol TK045
Fabricante: Teknokol · Código: TK045.420
44,18 € com IVA / un.36,82 € sem IVA
Fornecimento por encomenda — o prazo é confirmado com o orçamento.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Descrição do produto
90° angled connector, fixed — Teknokol TK045.
- Fixed 90° angular connection between horizontal and vertical profiles.
- Weight: 0.37 kg, dimensions: 57 × 90 × 90 mm (W × H × D).
- Designed for light configurations.
Dados técnicos
| Tipo | Junta angular |
|---|---|
| Sistema | TK045 |
| Execução | fixo |
| Material | alumínio |
| Cor | RAL 7035 / RAL 7016 |
| Peso, kg | 0,37 |
| Dimensões, mm | 57 × 90 × 90 |
| Grau de proteção | IP65 |
| Carga estática do sistema | 1100 N até 500 mm (esquema 1) / 520 N até 250 mm (esquema 2); braço até 2000 mm (esquema 1) / 1500 mm (esquema 2) |
| Código pautal (NC/TARIC) | 7616 99 90 (7616999099) |
| Direito aduaneiro na importação de países terceiros | 6 % |
