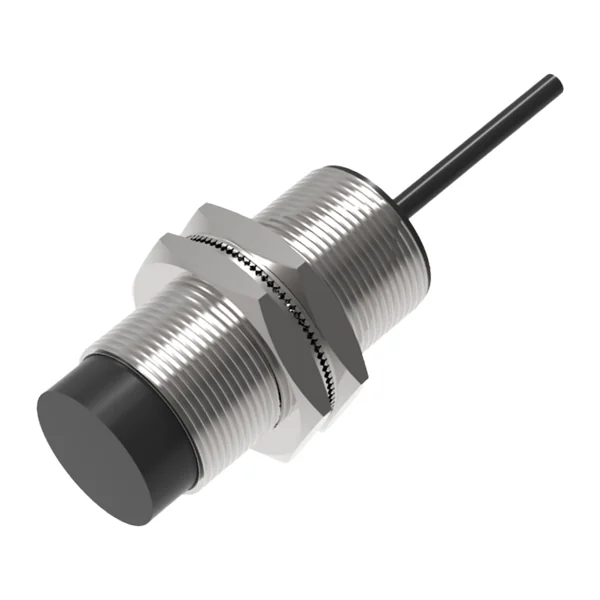

TYN30-40PO — Inductive sensor M30, non-flush, 40 mm, PNP NO, cable 2 m, 3 cores
Proizvajalec: Akusense · Koda: TYN30-40PO
90,91 € z DDV / kos75,76 € brez DDV
Dobava po naročilu — rok potrdimo s ponudbo.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Tehnični podatki
| Kategorija | Induktivni senzorji |
|---|---|
| Serija | TY |
| Izvedba | trojna razdalja |
| Princip delovanja | Induktivni |
| Oblika ohišja | Valjast z navojem |
| Velikost | M30 |
| Montaža | Nevgradni |
| Območje, mm | 40 |
| Doseg | Sn = 40 mm |
| Zagotovljena preklopna razdalja, mm | 32 |
| Izhod | PNP |
| Funkcija izhoda | NO |
| Napajanje | 10–30 V DC ±10 % |
| Obremenitev, mA | 150 |
| Frekvenca, Hz | 100 |
| Priključitev | Kabel 2 m, 3 žile |
| Vrsta priključitve | Kabel |
| Stopnja zaščite | IP67 |
| Material ohišja | Ponikljana medenina |
| Material čela | PBT |
| Indikacija | Rdeča LED |
| Zaščite | obratna polariteta, kratek stik, preobremenitev |
| Delovna temperatura | −25 … +70 °C |
| Min. temperatura, °C | -25 |
| Maks. temperatura, °C | 70 |
| Mere | M30 × 61 mm |
| Masa, g | 175 |
| Ponovljivost | ≤ 5 % |
| Histereza | ≤ 15 % |
| V kompletu | Matice |
| Najmanjši predmet | jeklo Fe 37 (St37) |
| Tarifna oznaka (KN/TARIC) | 8536 50 19 (8536501900) |
| Carina pri uvozu iz tretjih držav | 0 % |
