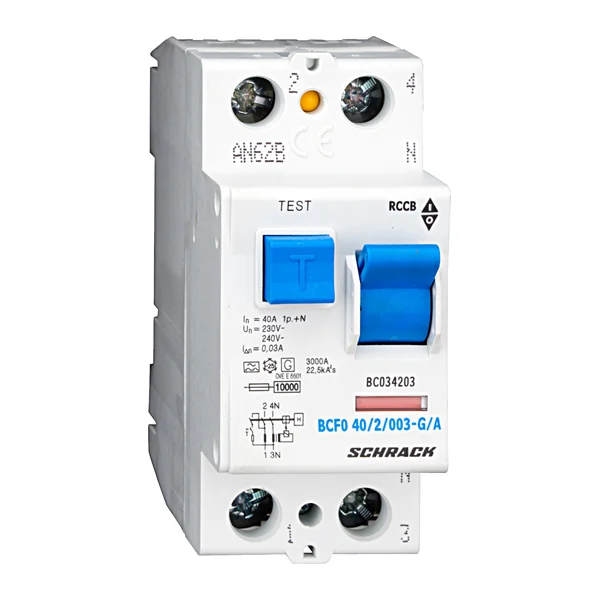

BC034203 — Residual current circuit breaker 40A, 2P, 30mA, type A, G, 10kA
Tillverkare: Schrack · Kod: BC034203
171,60 € inkl. moms / st143,00 € exkl. moms
Leverans på beställning – leveranstiden bekräftas i offerten.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Produktbeskrivning
Residual current circuit breaker 40A, 2P, 30mA, type A, G, 10kA.
- BC series
- Type A (sensitive to pulsating DC residual current)
- Type G (with time delay)
- Product standard EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017, EN 61008-2-1:1994 + A11:1998, EN 50581:2012
Tekniska data
| Typ | Jordfelsbrytare |
|---|---|
| Serie | BC |
| Märkström | 40 A |
| Poler | 2P |
| Brytförmåga | 10 kA |
| Märkfelström | 30 mA |
| Jordfelsbrytartyp | A |
| EAN | 9004840553529 |
| Nettovikt, kg | 0,22 |
| Tulltaxenummer (KN/TARIC) | 8536 30 30 |
