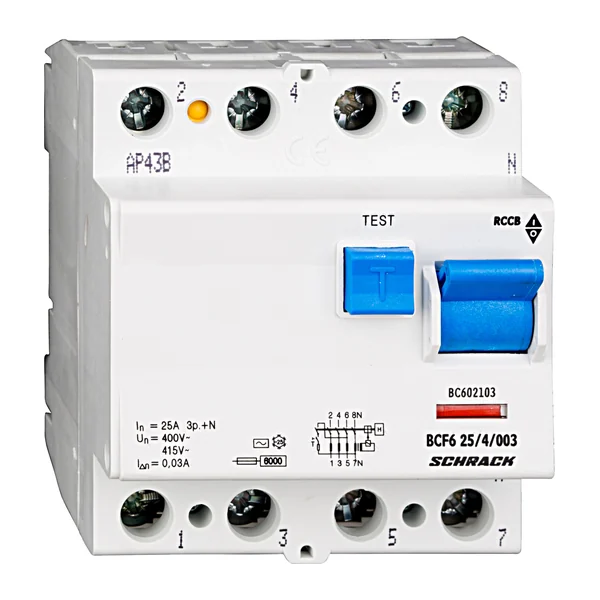

BC602103 — Residual current circuit breaker 25A, 4P, 30mA, type AC, 6kA
Tillverkare: Schrack · Kod: BC602103
53,66 € inkl. moms / st44,72 € exkl. moms
Leverans på beställning – leveranstiden bekräftas i offerten.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Produktbeskrivning
Residual current circuit breaker 25A, 4P, 30mA, type AC, 6kA.
- BC series
- Type AC (sensitive to AC residual current)
- Type: without time delay
- Product standard EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017, EN 61008-2-1:1994 + A11:1998, EN 50581:2012
Tekniska data
| Typ | Jordfelsbrytare |
|---|---|
| Serie | BC |
| Märkström | 25 A |
| Poler | 4P |
| Brytförmåga | 6 kA |
| Märkfelström | 30 mA |
| Jordfelsbrytartyp | AC |
| EAN | 9004840394153 |
| Nettovikt, kg | 0,32 |
| Tulltaxenummer (KN/TARIC) | 8536 30 30 |
