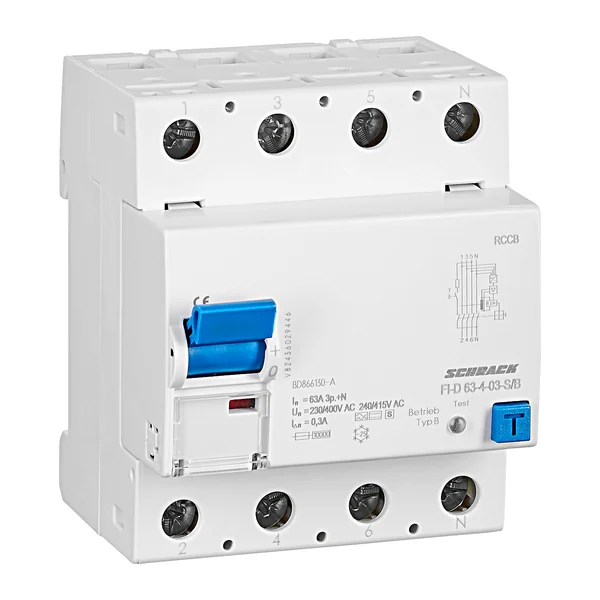

BD866130-A — Residual current circuit breaker 63A, 4-pole, 300mA, type B, S
Manufacturer: Schrack · Code: BD866130-A
€1,315.20 incl. VAT / pc€1,096.00 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Residual current circuit breaker 63A, 4-pole, 300mA, type B, S.
- BD series
Technical data
| Product type | Residual current circuit breaker |
|---|---|
| Series | BD |
| Rated current | 63 A |
| Poles | 4P |
| Rated residual current | 300 mA |
| RCD type | B |
| EAN | 9004840969405 |
| Net weight, kg | 0,41 |
| Tariff code (CN/TARIC) | 8536 30 30 |
