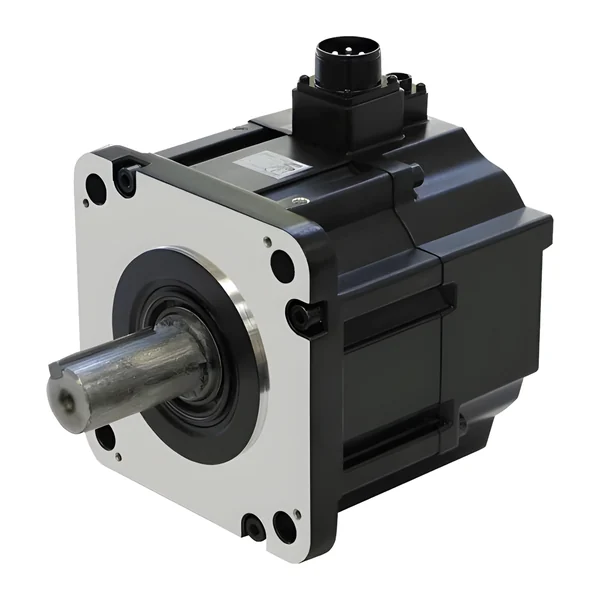

ECM-B3M-LB1830SS1 — Servo motor ECM-B3M, 3 kW, with brake
Manufacturer: Delta Electronics · Code: ECM-B3M-LB1830SS1
€1,794.79 incl. VAT / pc€1,495.66 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
ECM-B3M-LB1830SS1 — servo motor ECM-B3M (medium inertia), 3 kW, 400 V · rated torque 19.1 N·m, maximum 57.29 N·m · rated speed 1500 min⁻¹, maximum 3000 min⁻¹ · flange 180 mm · 24-bit battery-free absolute magnetic-optical encoder · with electromagnetic brake 24 V DC · keyed shaft with oil seal, MIL connector · for servo drives ASDA-A3, ASDA-B3 and ASDA-A3-EP.
Technical data
| Product type | Servo motor |
|---|---|
| Power, kW | 3 |
| Power supply | 400 V AC, 3ph |
| Rated speed, min⁻¹ | 1500 |
| Max. speed, min⁻¹ | 4000 |
| Rated torque, N·m | 19,1 |
| Max. torque, N·m | 57,3 |
| Encoder | absolute magnetic-optical, battery-free |
| Encoder resolution, bit | 24 |
| Brake | Yes |
| Series | ASDA-A3 / B3 |
| Compatible drives | ASDA-B3 / A3 (incl. A3-EP) |
| Net weight, kg | 17,6 |
| Tariff code (CN/TARIC) | 8501 52 20 (8501522089) |
| Import duty from third countries | 2,7 % |
