Fan and fan-filters

Electrical elements mounted in the panel emit heat to prevent this forced cooling fans are available for wall mounting as well as the ceiling of the panel.

Panel mount models offer a wide variety of sizes

• There is a square shape with the dimensions 111×111 mm, 148×148 mm, 204×204 mm, 255×255 mm, up to 320×320 mm
• They have air exchange from 20 m3/h to 1000 m3/h
• The body is in RAL7035 or RAL7032 color
• Protection IP55
• Working temperature -10 С up to +55 С

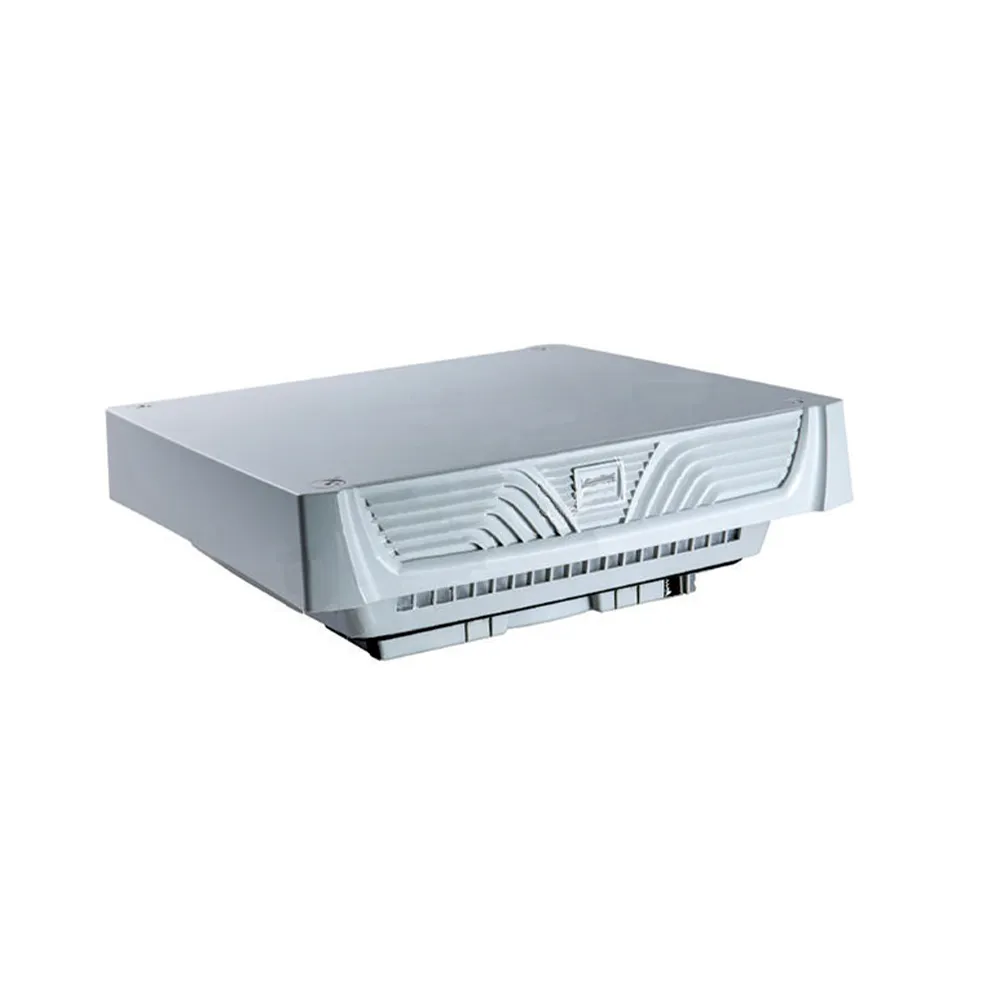

Models with ceiling mounting are suitable when it is not possible to mount them laterally

• Standard dimensions are 400х400 mm
• They have air exchange from 570 m3/h up to 1300 m3/h
• The body is in RAL7035 or RAL7032 color
• Protection IP22 for models without filter and IP55 for models with a filter in accordance with the IEC60529 standard
• Working temperature -20 С up to +55 С
