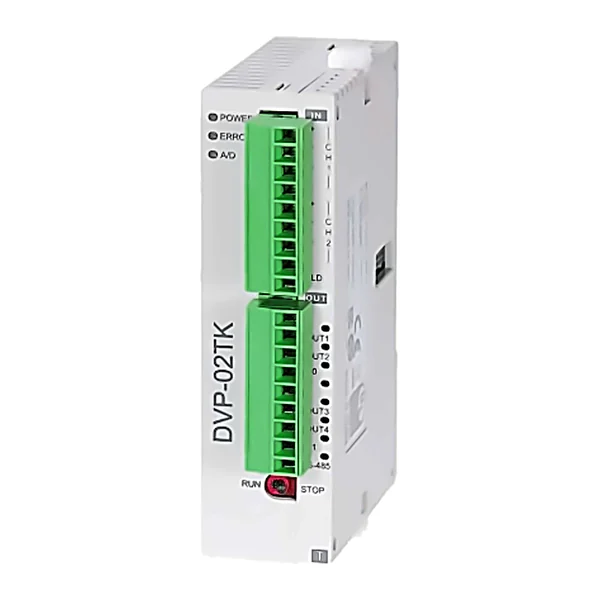

DVP02TKR-S — DVP-S (Module) – Temperature control module with RS-485, 2 universal inputs, 4 relay outputs
Hersteller: Delta Electronics · Artikelnummer: DVP02TKR-S
Lieferung auf Anfrage — die Lieferzeit wird mit dem Angebot bestätigt.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Produktbeschreibung
DVP02TKR-S — temperature control module with RS-485 for DVP-S series, 2 universal inputs and 4 relay outputs · 2 universal analog inputs: voltage 0–10 V, 0–5 V, 0–50 mV, −100…+100 mV; current 0–20 mA, 4–20 mA · Thermocouples J, K, R, S, T, E, N, B, U, L, TXK, C, PLII; RTD Pt100, JPt100, Pt1000, Ni100, Ni120, Ni1000, Cu50, Cu100, LG-Ni1000 · Resolution 16 bits (voltage, current) and 24 bits (temperature inputs), temperature 0.1 °C; accuracy ±0.5% (voltage, current), ±0.4% (temperature) · 4 relay outputs up to 250 V AC / 30 V DC, 2 A per output, 3 A common · Built-in RS-485 (Modbus ASCII/RTU) with own station address · Built-in PID controller and manual output control · Power supply 24 V DC (20.4–28.8 V) · Detachable terminal block · Up to 8 modules to one DVP-S controller, without occupying digital inputs/outputs · Operating temperature 0–55 °C, IP20
Technische Daten
| Serie | DVP-S |
|---|---|
| Digitale Ausgänge | 4 |
| Zusätzliche Funktionen | 2 универсални аналогови входа (0~10 V, 0~5 V, 0~50 mV, -100~+100 mV, 0~20 mA, 4~20 mA; термодвойки J, K, R, S, T, E, N, B, C, L, U, TXK, PLII; RTD Pt100, JPt100, Pt1000, Cu50, Cu100, Ni100, Ni120, Ni1000, LG-Ni1000); аналогов вход 16 бита (температурен вход 24 бита); вграден PID; 4 релейни изхода до 250 V AC / 30 V DC, 2 A на изход (3 A на общ) |
| Nettogewicht, kg | 0,07 |
| Zolltarifnummer (KN/TARIC) | 8538 90 99 (8538909999) |
| Einfuhrzoll aus Drittländern | 1,7 % |
