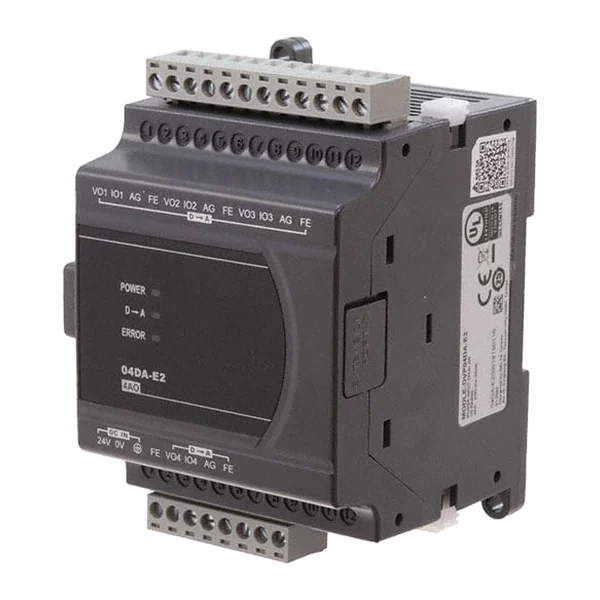

DVP04DA-E2 — DVP-EX/ES (Module) – analog output module, 4 channels, 14 bits
Hersteller: Delta Electronics · Artikelnummer: DVP04DA-E2
Lieferung auf Anfrage — die Lieferzeit wird mit dem Angebot bestätigt.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Produktbeschreibung
DVP04DA-E2 — Analog output module, 4 channels for DVP-ES2 / EX2 / ES3 / EX3 controllers (DVP-E series) · Output: voltage -10…+10 V, current 0–20 mA or 4–20 mA · Resolution: 14 bits (digital range -32,000…+32,000 for voltage, 0…+32,000 for current) · Conversion time: 400 µs per channel · Accuracy: ±0.5 % of full scale at 25 °C, ±1 % at 0–55 °C · Load: voltage 1 kΩ–2 MΩ, current 0–500 Ω · Power supply: 24 V DC (20.4–28.8 V) · Removable terminal block (5 mm pitch) · Up to 8 modules per controller, without occupying digital inputs/outputs · Operating temperature: 0–55 °C, IP20
Technische Daten
| Serie | DVP-EX / ES |
|---|---|
| Analoge Ausgänge | 4 |
| Zusätzliche Funktionen | Analogausgänge 4 Punkte: Spannung -10~+10 V / Strom 0~20 mA, 4~20 mA; 14 Bit |
| Nettogewicht, kg | 0,207 |
| Zolltarifnummer (KN/TARIC) | 8538 90 99 (8538909999) |
| Einfuhrzoll aus Drittländern | 1,7 % |
