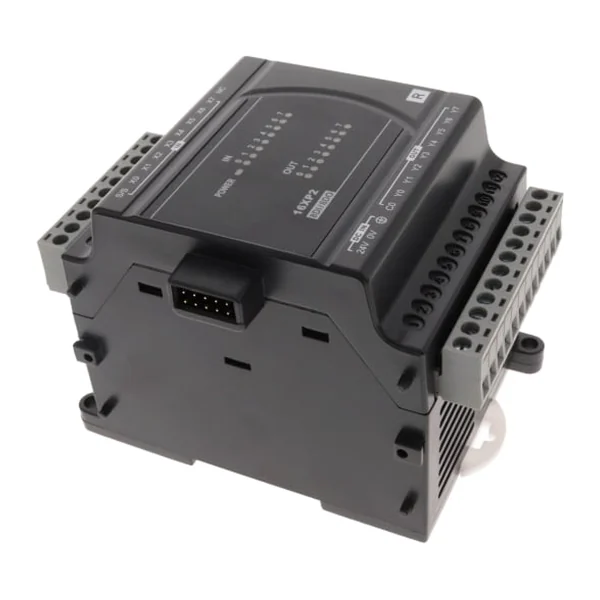

DVP16XP211R — DVP-EX/ES (Module) – digital module, 8 inputs and 8 relay outputs
Hersteller: Delta Electronics · Artikelnummer: DVP16XP211R
Lieferung auf Anfrage — die Lieferzeit wird mit dem Angebot bestätigt.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Produktbeschreibung
DVP16XP211R — Digital module, 8 inputs and 8 relay outputs for DVP-ES2 / EX2 / ES3 / EX3 controllers (DVP-E series) · Inputs: 24 V DC, 5 mA (sinking or sourcing); activation at > 15 V DC, deactivation at < 5 V DC; response time: 10 ms (activation) and 15 ms (deactivation); isolation: 500 V AC · Relay outputs: 10–240 V AC or 5–30 V DC, 2 A per output, 5 A per common (COM); frequency ≤ 1 Hz; isolation: 1500 V AC · Requires external auxiliary power supply: 24 V DC (-15…+20 %), approximately 5 mA per point · Power supply: 24 V DC from the controller · Removable terminal block · Operating temperature: 0–55 °C, IP20
Technische Daten
| Serie | DVP-EX / ES |
|---|---|
| Digitale Eingänge | 8 |
| Digitale Ausgänge | 8 |
| Zusätzliche Funktionen | Ausgänge: Relais |
| Nettogewicht, kg | 0,179 |
| Zolltarifnummer (KN/TARIC) | 8538 90 99 (8538909999) |
| Einfuhrzoll aus Drittländern | 1,7 % |
