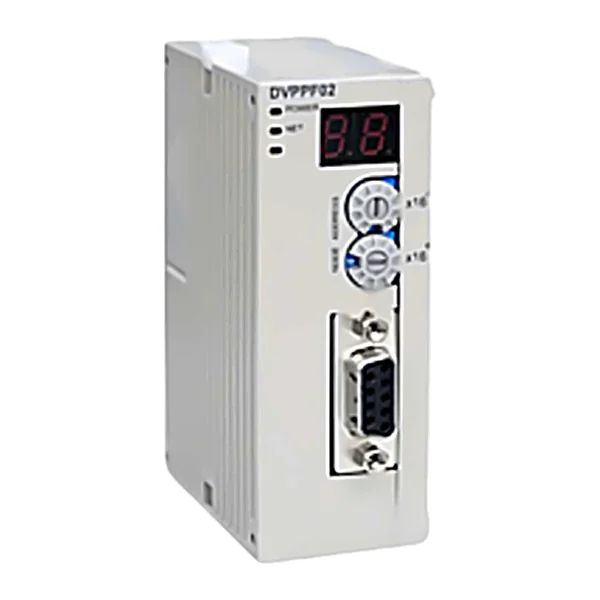

DVPPF02-SL — DVP-S (Module) — Profibus DP slave communication, 12 Mbps
Hersteller: Delta Electronics · Artikelnummer: DVPPF02-SL
342,07 € inkl. MwSt. / Stk.285,06 € zzgl. MwSt.
Lieferung auf Anfrage — die Lieferzeit wird mit dem Angebot bestätigt.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Produktbeschreibung
DVPPF02-SL — Left (High-Speed) PROFIBUS DP Slave Module for DVP-S Series PLCs (DVP-SV, SX2, SV3, SX3) · Speed up to 12 Mbit/s with automatic detection (9.6 k, 19.2 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M) · DB9 connector, high-speed RS-485, 500 V DC isolation · Up to 100 output words and 100 input words · Up to 8 modules on the left side of the PLC · Powered from the processor, 2 W · GSD file: DELA0AFE.GSD · Width: 33 mm, Weight: 118 g
Technische Daten
| Serie | DVP-S |
|---|---|
| Feldbus | PROFIBUS DP |
| Kommunikation | PROFIBUS DP |
| Zusätzliche Funktionen | Linkes Modul, PROFIBUS DP Slave-Gerät, bis 12 Mbps; Stecker DB9 |
| Nettogewicht, kg | 0,118 |
| Zolltarifnummer (KN/TARIC) | 8517 62 00 (8517620000) |
| Einfuhrzoll aus Drittländern | 0 % |
