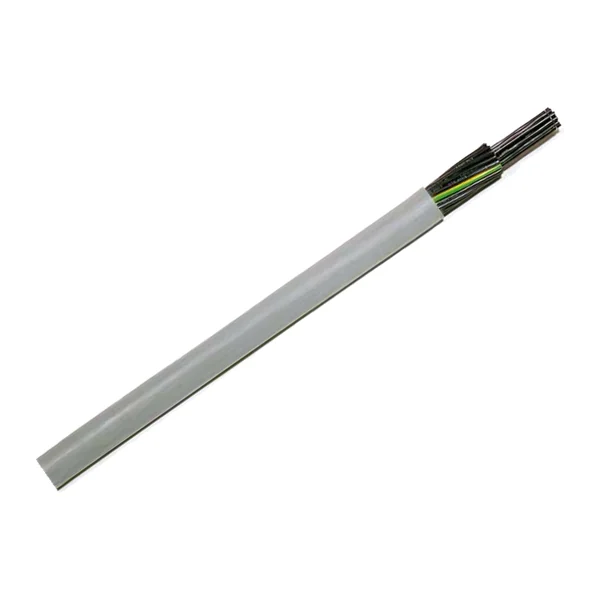

110 0010 003 — Контролен кабел ConCab PVC-JZ-110 3G1,0 mm², сив
Manufacturer: ConCab · Code: 110 0010 003
€0.84 incl. VAT / m€0.70 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Product type | Control cable |
|---|---|
| Manufacturer | ConCab kabel GmbH |
| Series | CC-Steuerleitung PVC-JZ-110 |
| Number of cores × cross-section | 3G1,0 |
| Cross-section, mm² | 1,0 |
| Number of cores | 3 |
| Shield | no |
| Sheath | PVC, oil-resistant, flame-retardant (EN 60332-1-2), silicone- and cadmium-free |
| Core insulation | PVC; black cores with white numbers, green-yellow protective earth core (JZ, from 3 cores) |
| Sheath colour | grey (RAL 7001) |
| Rated voltage | 300/500 V |
| Min. bending radius | fixed 4×d; flexible 15×d |
| Operating temperature | fixed −40…+80 °C; flexible −5…+80 °C |
| Conductor | fine-stranded copper conductor, class 5 (DIN VDE 0295) |
| Standards and approvals | to DIN VDE 0250, 0285 |
| Application | free movement without forced guidance; not a drag chain cable |
| Outer diameter, mm | 6,2 |
| Weight, kg/km | 63 |
| Copper, kg/km | 29 |
| Sold by | by the metre |
| Tariff code (CN/TARIC) | 8544 49 95 (8544499590) |
| Import duty from third countries | 3,7 % |
