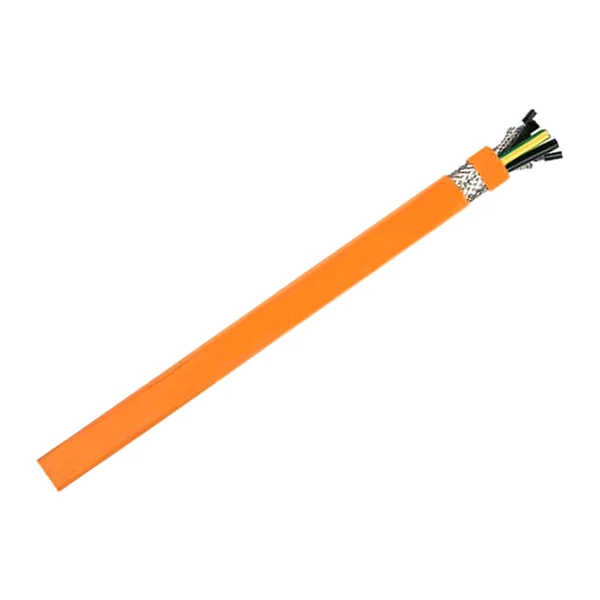

584 4025 215 08 — Servo cable Servoflex PUR-C-584 0.6/1 kV, shielded 4G2.5 + (2×1.5) mm², orange
Manufacturer: ConCab · Code: 584 4025 215 08
€14.66 incl. VAT / m€12.22 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Servo cable Servoflex PUR-C-584 0.6/1 kV, shielded 4G2.5 + (2×1.5) mm², orange.
- Servo cable for power and feedback of servo motors - power conductors and shielded signal pairs in one cable.
- The control cables have aluminum foil, a drainage wire, and their own tinned braid; overall braid made of tinned copper.
- Power cables 0.6/1 kV, rated for 300/500 V; 1000 V according to UL/CSA
- Halogen-free PUR sheath in orange color DESINA® (RAL 2003), resistant to oils, cuts, and abrasion.
- Bending radius 7.5 x d during movement, 5 x d when stationary
- For cable chains, manipulators, and robots; UL Style 10264 / 20234 and CSA AWM approved.
- Construction 4G2.5 + (2×1.5): outer diameter 12.4 mm, weight 255 kg/km, copper 183 kg/km.
- Equivalent in the Siemens system: reference 6FX8008-1BA21
Technical data
| Product type | Servo cable (power + control pairs) |
|---|---|
| Manufacturer | ConCab kabel GmbH |
| Series | CC-Servoflex PUR-C-584 |
| Number of cores × cross-section | 4G2,5 + (2×1,5) |
| Cross-section, mm² | 2,5 |
| Number of cores | 6 |
| AWG | 4×AWG14 + 2×AWG16 |
| Shield | yes — overall tinned copper braid; control pairs with aluminium foil and individual braid |
| Sheath | PUR, halogen-free, flame-retardant (EN 60332-1-2) |
| Core insulation | polypropylene (PP); black cores with white numbers + green-yellow protective earth core |
| Sheath colour | orange DESINA® (RAL 2003) |
| Rated voltage | power cores 0.6/1 kV, control 300/500 V (VDE/IEC); 1000 V (UL/CSA) |
| Min. bending radius | fixed 5×d; flexible 7.5×d |
| Operating temperature | fixed −50…+80 °C; flexible −40…+80 °C |
| Capacitance | core/core ≈ 70 nF/km; core/shield ≈ 110 nF/km (800 Hz) |
| Conductor | extra-fine-stranded copper conductor, class 6 (DIN VDE 0295) |
| Standards and approvals | DESINA®; to DIN VDE 0250, 0285; UL Style 10264, 20234; CSA AWM I A/B, II A/B FT1 |
| Outer diameter, mm | 12,4 |
| Weight, kg/km | 255 |
| Copper, kg/km | 183 |
| Application | drag chains (energy chains) |
| Tariff code (CN/TARIC) | 8544 49 99 (8544499900) |
| Import duty from third countries | 3,7 % |
