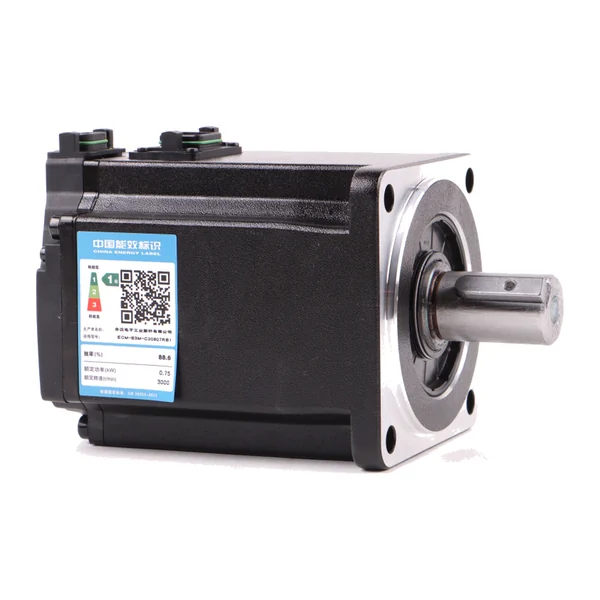

ECM-B3M-C20804RK1 — Серво двигател ECM-B3M, 0,4 kW
Manufacturer: Delta Electronics · Code: ECM-B3M-C20804RK1
€422.65 incl. VAT / pc€352.21 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
ECM-B3M-C20804RK1 — servo motor ECM-B3M (medium inertia), 0.4 kW, 220 V · rated torque 1.27 N·m, maximum 4.45 N·m · rated speed 3000 min⁻¹, maximum 6000 min⁻¹ · flange 80 mm · 24-bit incremental optical encoder · without brake · keyed shaft with oil seal.
Technical data
| Product type | Servo motor |
|---|---|
| Power, kW | 0,4 |
| Power supply | 230 V AC |
| Rated speed, min⁻¹ | 3000 |
| Max. speed, min⁻¹ | 6000 |
| Rated torque, N·m | 1,27 |
| Max. torque, N·m | 3,82 |
| Encoder | incremental optical |
| Encoder resolution, bit | 24 |
| Brake | No |
| Series | ASDA-A3 / B3 |
| Compatible drives | ASDA-B3 / A3 (incl. A3-EP) |
| Net weight, kg | 1,7 |
| Tariff code (CN/TARIC) | 8501 51 00 (8501510090) |
| Import duty from third countries | 2,7 % |
