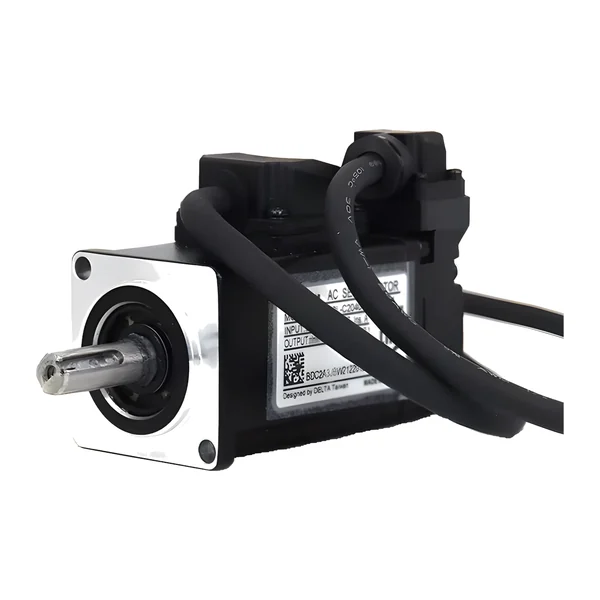

ECM-E3L-CP0401RSE — Серво двигател ECM-E3L, 0,1 kW
Manufacturer: Delta Electronics · Code: ECM-E3L-CP0401RSE
€319.85 incl. VAT / pc€266.54 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
ECM-E3L-CP0401RSE — servo motor ECM-E3L (low inertia), 0.1 kW, 220 V · rated torque 0.32 N·m, maximum 1.12 N·m · rated speed 3000 min⁻¹, maximum 6000 min⁻¹ · flange 40 mm · 17-bit absolute magnetic encoder (16-bit multi-turn) · without brake · keyed shaft with oil seal, standard connector · for servo drives ASDA-E3.
Technical data
| Product type | Servo motor |
|---|---|
| Power, kW | 0,1 |
| Power supply | 230 V AC |
| Rated speed, min⁻¹ | 3000 |
| Max. speed, min⁻¹ | 6000 |
| Rated torque, N·m | 0,32 |
| Max. torque, N·m | 0,95 |
| Encoder | absolute magnetic |
| Encoder resolution, bit | 17 |
| Brake | No |
| Series | ASDA-E3 |
| Net weight, kg | 0,5 |
| Tariff code (CN/TARIC) | 8501 51 00 (8501510090) |
| Import duty from third countries | 2,7 % |
