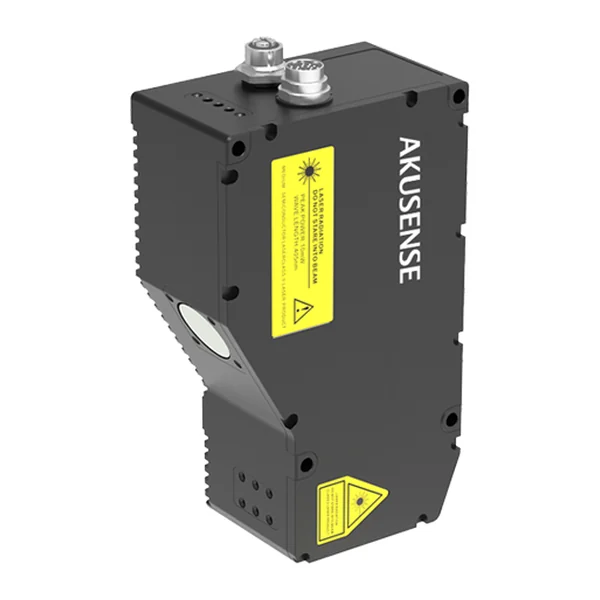

ESX-G100 — 3D laser profiler, field 55 – 88 mm, depth 74 mm, Gigabit Ethernet
Manufacturer: Akusense · Code: ESX-G100
€11,498.95 incl. VAT / pc€9,582.46 excl. VAT
Delivered to order — lead time confirmed on request
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Category | 3D laser profilers |
|---|---|
| Series | ESX |
| Version | 3D laser profilers |
| Operating principle | Laser triangulation, line (2D) |
| Detection method | Diffuse |
| Housing shape | Rectangular |
| Power supply | 24 V DC |
| Frequency, Hz | 20000 |
| Degree of protection | IP67 |
| Housing material | Aluminium alloy |
| Light source | Blue laser 405 nm, 10 mW, class 2M/3R |
| Operating temperature | 0 … +50 °C |
| Min. temperature, °C | 0 |
| Max. temperature, °C | 50 |
| Dimensions | 170 × 105 × 60 mm |
| Weight, g | 1220 |
| Repeatability | 0,6 µm |
| Linearity | ±0,02 % |
| Interface | Gigabit Ethernet; 24 V TTL input and output; 2 × RS-485 input/output |
| Tariff code (CN/TARIC) | 9031 49 90 (9031499000) |
| Import duty from third countries | 0 % |
