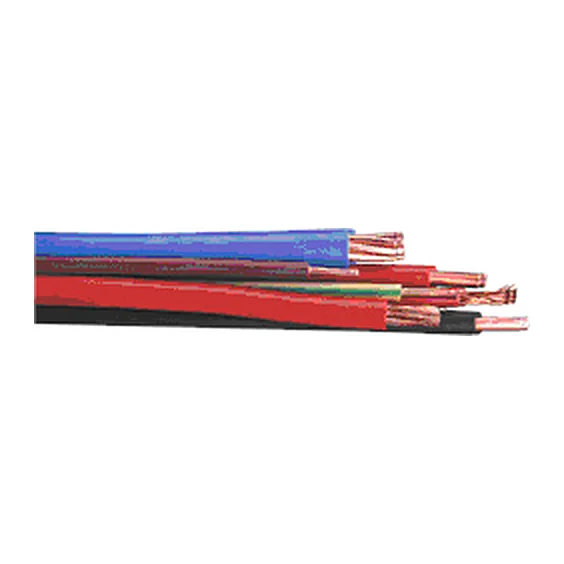

H07V-K 1×2,5 черен — Installation wire H07V-K (PV-A2) 1×2.5 mm², black, 0.45/0.75 kV
Code: H07V-K 1×2,5 черен
€0.68 incl. VAT / m€0.57 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Technical data
| Product type | Installation wire |
|---|---|
| Series | H07V-K |
| Number of cores × cross-section | 1×2,5 |
| Cross-section, mm² | 2,5 |
| Number of cores | 1 |
| Core insulation | PVC (type TI1 to EN 50363-3) |
| Core | copper, fine-stranded, class 5 (IEC 60228) |
| Insulation colour | black |
| Rated voltage | U0/U 450/750 V |
| Test voltage | 2500 V |
| Outer diameter, mm | 3,4–4,1 |
| Copper, kg/km | 24 |
| Min. bending radius | fixed: below 8 mm — 4×d; 8–12 mm — 5×d; above 12 mm — 6×d |
| Operating temperature | fixed −30…+80 °C; flexing +5…+70 °C |
| Application | in conduits, on/under plaster, lighting and control installations, enclosures |
| Standards and approvals | EN 50525-2-31 (HD 21.3), IEC 60227-3; flame retardance IEC 60332-1-2 |
| Sold by | by the metre |
| Tariff code (CN/TARIC) | 8544 49 95 (8544499590) |
| Import duty from third countries | 3,7 % |
