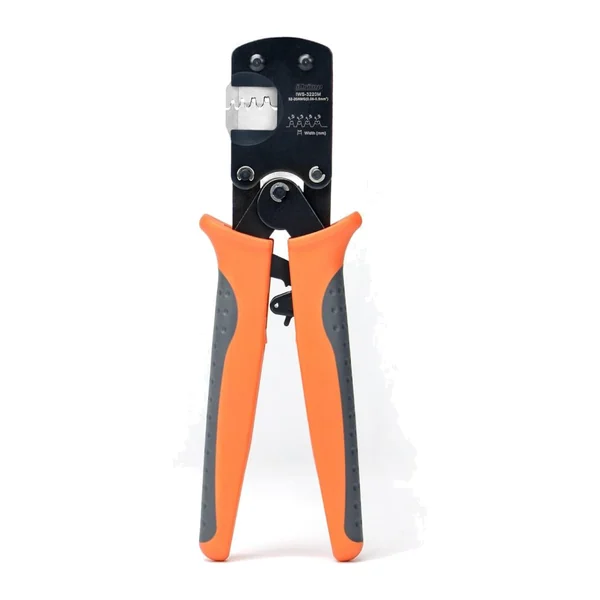

IWS-3220M — Crimping pliers for micro connectors IWISS, 0.03–0.52 mm² (AWG 32–20)
Manufacturer: IWISS · Code: IWS-3220M
€48.47 incl. VAT / pc€40.39 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
IWS-3220M — crimping tool for open contacts of micro connectors 0.03–0.52 mm² (AWG 32–20).
Features: Parallel movement of the dies — even force on the small contact; double-layer die (cut by electrical discharge machining) presses the wire and insulation simultaneously; slots with width 1.0 / 1.3 / 1.6 / 1.9 mm; TPR handles; length 195 mm, 0.30 kg.
Application: Molex CLIK-Mate and PicoBlade, JST SHD, JAM, TE (Tyco) D-100, D-sub with open contact - circuit boards, sensors, encoders, small motors.
Technical data
| Product type | crimping pliers for open-barrel contacts |
|---|---|
| Cross-section, mm² | 0,03–0,52 |
| Cross-section, AWG | 32–20 |
| Crimp profile | B (open-barrel contact) |
| Crimping cavities, mm | 1,0 / 1,3 / 1,6 / 1,9 |
| Suitable for | Molex CLIK-Mate, PicoBlade; JST SHD; JAM; TE D-100; D-sub |
| Tool length, mm | 195 |
| Net weight, kg | 0,3 |
| Tariff code (CN/TARIC) | 8203 20 00 (8203200000) |
| Import duty from third countries | 1,7 % |
