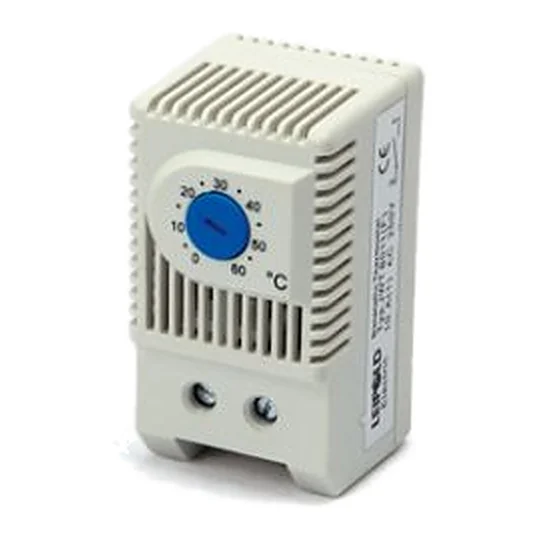

JWT6011F — Thermostat for fan JWT6011F (NO contact, blue knob)
Manufacturer: Leipole · Code: JWT6011F
€13.57 incl. VAT / pc€11.31 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
JWT6011F (2021.002) — thermostat for panel, 0…+60 °C, NO contact, 10 A.
Features: bimetallic, NO (closes when temperature rises); AC 250 V 10 (2) A, AC 120 V 15 (2) A, DC 30 W; differential 7 K (±4 K); −5…+80 °C; IP20; 35 mm DIN rail; 60 × 33 × 43 mm.
Application: Includes a fan, heat exchanger, or alarm for values exceeding the set point.
Technical data
| Catalogue number | 2021.002 |
|---|---|
| Category | Thermostats and hygrostats |
| Series | JWT60 |
| Type | thermostat |
| Power supply | up to AC 250 V |
| Setting range | 0 … +60 °C |
| Contact | NO (closes on rising temperature) |
| Switching capacity | AC 250 V 10 (2) A; AC 120 V 15 (2) A; DC 30 W |
| Dimensions, mm | 60 × 33 × 43 |
| Mounting | DIN rail 35 mm |
| Connection | 2 × 2,5 mm², 0,8 N·m |
| Material | ABS |
| Colour | light grey, blue knob |
| Degree of protection | IP20 |
| Flammability class | UL94 V-0 (terminals) |
| Operating temperature, °C | −5 … +80 |
| Standards and certificates | CE |
| Application | control of fans, heaters and alarms in enclosures |
| Tariff code (CN/TARIC) | 9032 10 80 (9032108090) |
| Import duty from third countries | 2,1 % |
