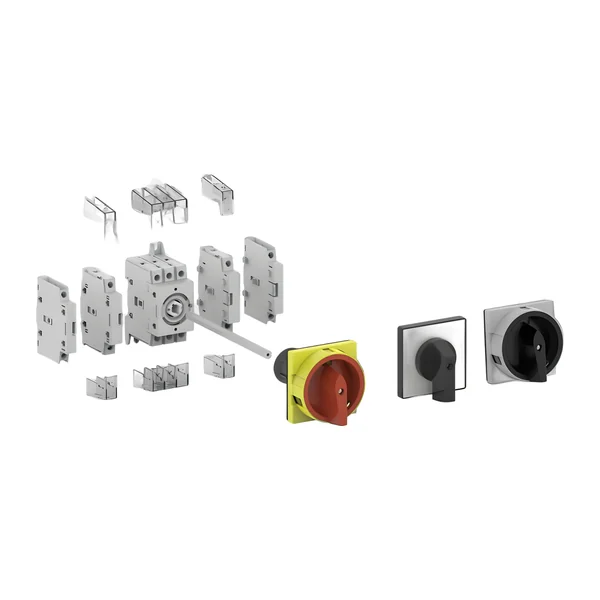

RK30-80 / R2 — Switch-disconnector RK30, Switch-disconnector OFF–ON, 90°, 3P, Ith 80 A, Ue 690 V, AC-23A 37 kW, Rear panel mounting, 4 holes (R), Yellow plate
Code: RK30-80 / R2
€82.54 incl. VAT / pc€68.78 excl. VAT
In stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description
Disconnect switch OFF–ON, 90°. Load disconnect switch for switchboards; motors up to 37 kW (AC-23A, 415 V); connection 2.5–35 mm².
Technical data
| Series | RK30 |
|---|---|
| Function | Switch disconnector OFF–ON, 90° |
| Poles | 3P |
| Ith, A | 80 |
| Ue, V | 690 |
| AC-23A, kW | 37 |
| Mounting | Rear panel mounting, 4 holes (R) |
| Plate / handle | Yellow plate, red knob with padlock |
| Padlock | yes |
| Plate, mm | 64×64 |
| Panel cut-out, mm | 4×ø3.45 (ST4,2) on 48×48 |
| Tariff code (CN/TARIC) | 8536 50 80 (8536508000) |
| Import duty from third countries | 0 % |
