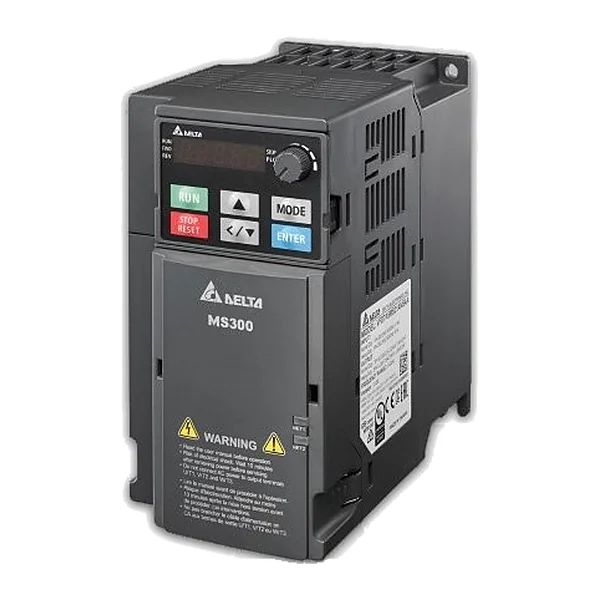

VFD11AMS21ANSAA — Frequency inverter VFD-MS300, 2.2 kW, 230 V AC, 1ph

Manufacturer: Delta Electronics · Code: VFD11AMS21ANSAA

€378.94 incl. VAT / pc€315.78 excl. VAT

In stock

Open in the e-shop — inquiry and order

Prices are indicative; send an inquiry for a firm quotation.

Description

VFD11AMS21ANSAA — frequency inverter VFD-MS300, 2.2 kW, 230 V AC single-phase (200–240 V AC) · rated output current HD 11 A / ND 12.5 A · IP20 · without built-in EMC filter · built-in Safe Torque Off (STO) — ISO 13849-1 Cat. 3 PL d, EN 61508 SIL 2 · built-in brake chopper · control methods V/F, SVC and sensorless FOC · motors: induction (IM) and permanent magnet (IPM and SPM) · built-in PLC (2k steps) · built-in Modbus · max. output frequency 599 Hz · overload HD: 150 % for 60 s and 200 % for 3 s; ND: 120 % for 60 s and 150 % for 3 s.

Technical data

Series	VFD-MS300
Power, kW	2,2
Power supply	230 V AC, 1ph
ND current, A	12,5
HD current, A	11
Communication	RS-485 Modbus — built-in; optional cards: PROFIBUS DP, DeviceNet, Modbus TCP, EtherNet/IP, CANopen, EtherCAT
STO	built-in (ISO 13849-1 Cat. 3 PL d, EN 61508 SIL 2)
EMC filter	external (optional)
Options	KPC-CC01 digital keypad, communication card, braking resistor, AC / DC reactors, adapter mounting plate
Certificates	UL, CE, RoHS, RCM, TÜV, REACH
Net weight, kg	1,24
Tariff code (CN/TARIC)	8504 40 95 (8504409590)
Import duty from third countries	0 %
