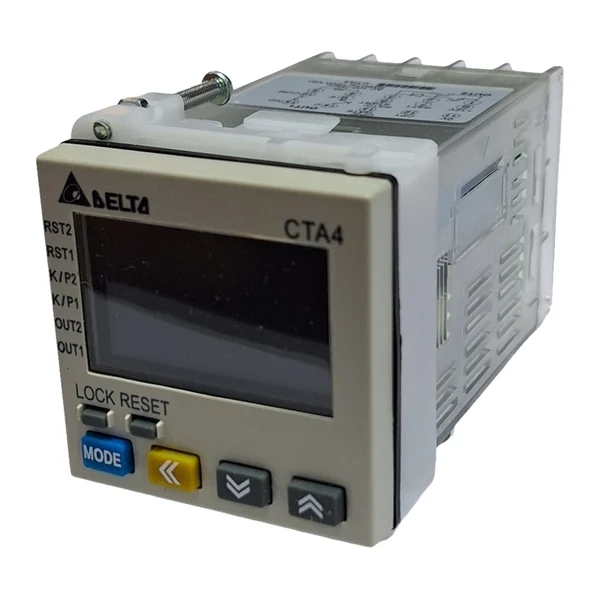

CTA4100D — Counter / timer / tachometer 3 in 1 Delta CTA series, 48 × 48 mm (1/16 DIN), 6-digit dual-line LCD display, 2 setpoints, output 1: SPST relay 250 VAC 5 A, output 2: SPDT relay, 250 VAC, 5 A, supply 24 VDC
Fabricant: Delta Electronics · Référence: CTA4100D
100,39 € TTC / pce83,66 € HT
En stock
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description du produit
Delta CTA series 3-in-1 Counter/Timer/Tachometer, 48 × 48 mm (1/16 DIN), 6-digit dual-line LCD display, 2 setpoint levels, Output 1: SPST relay, 250 VAC, 5 A, Output 2: SPDT relay, 250 VAC, 5 A, 24 VDC power supply. Counting speed up to 10 kpps; NPN/PNP inputs; preset scaling; single, dual, batch, totalizing, and quadrature counting modes; 12 VDC 100 mA sensor power supply.
Données techniques
| Série | CTA |
|---|---|
| Taille | 48 × 48 mm (1/16 DIN) |
| Sortie 1 | Relais SPST (contact à fermeture), 250 VAC, 5 A |
| Sortie 2 | Relais SPDT (contact inverseur), 250 VAC, 5 A |
| Communication | Aucun |
| Alimentation | 24 VDC |
| Code tarifaire (NC/TARIC) | 9029 10 00 (9029100090) |
| Droit de douane à l’importation de pays tiers | 1,9 % |
