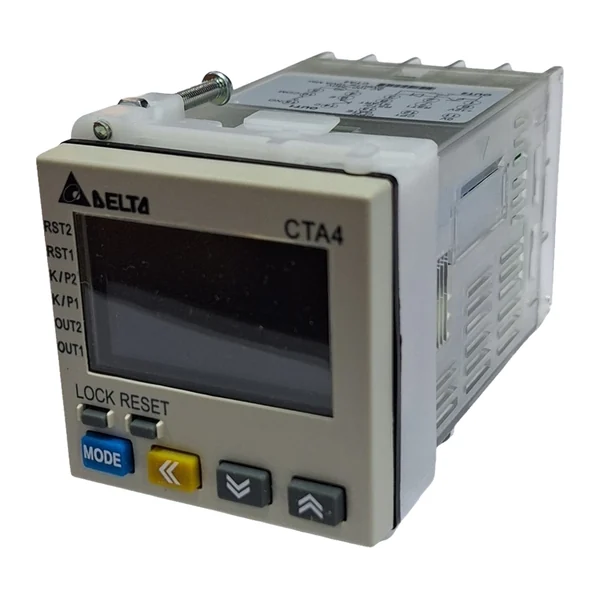

CTA4101D — Counter / timer / tachometer 3 in 1 Delta CTA series, 48 × 48 mm (1/16 DIN)
Fabricant: Delta Electronics · Référence: CTA4101D
115,68 € TTC / pce96,40 € HT
Livraison sur demande — le délai est confirmé avec l’offre.
Open in the e-shop — inquiry and order
Prices are indicative; send an inquiry for a firm quotation.
Description du produit
Counter / timer / tachometer 3-in-1, Delta CTA series, 48 x 48 mm (1/16 DIN), 6-digit double-row LCD display, 2 setpoint levels, output 1: SPST relay 250 VAC 5 A, output 2: SPDT relay, 250 VAC, 5 A, RS-485, power supply 24 VDC. Counting speed up to 10 kpps; inputs NPN / PNP; preset scaling; single-step, dual-step, batch, totalizing, and double counting; sensor power supply 12 VDC 100 mA.
Données techniques
| Série | CTA |
|---|---|
| Taille | 48 × 48 mm (1/16 DIN) |
| Sortie 1 | Relais SPST (contact à fermeture), 250 VAC, 5 A |
| Sortie 2 | Relais SPDT (contact inverseur), 250 VAC, 5 A |
| Communication | RS-485 |
| Alimentation | 24 VDC |
| Code tarifaire (NC/TARIC) | 9029 10 00 (9029100090) |
| Droit de douane à l’importation de pays tiers | 1,9 % |
